Ch. 8 V-BELT DRIVING SYSTEM
8-7

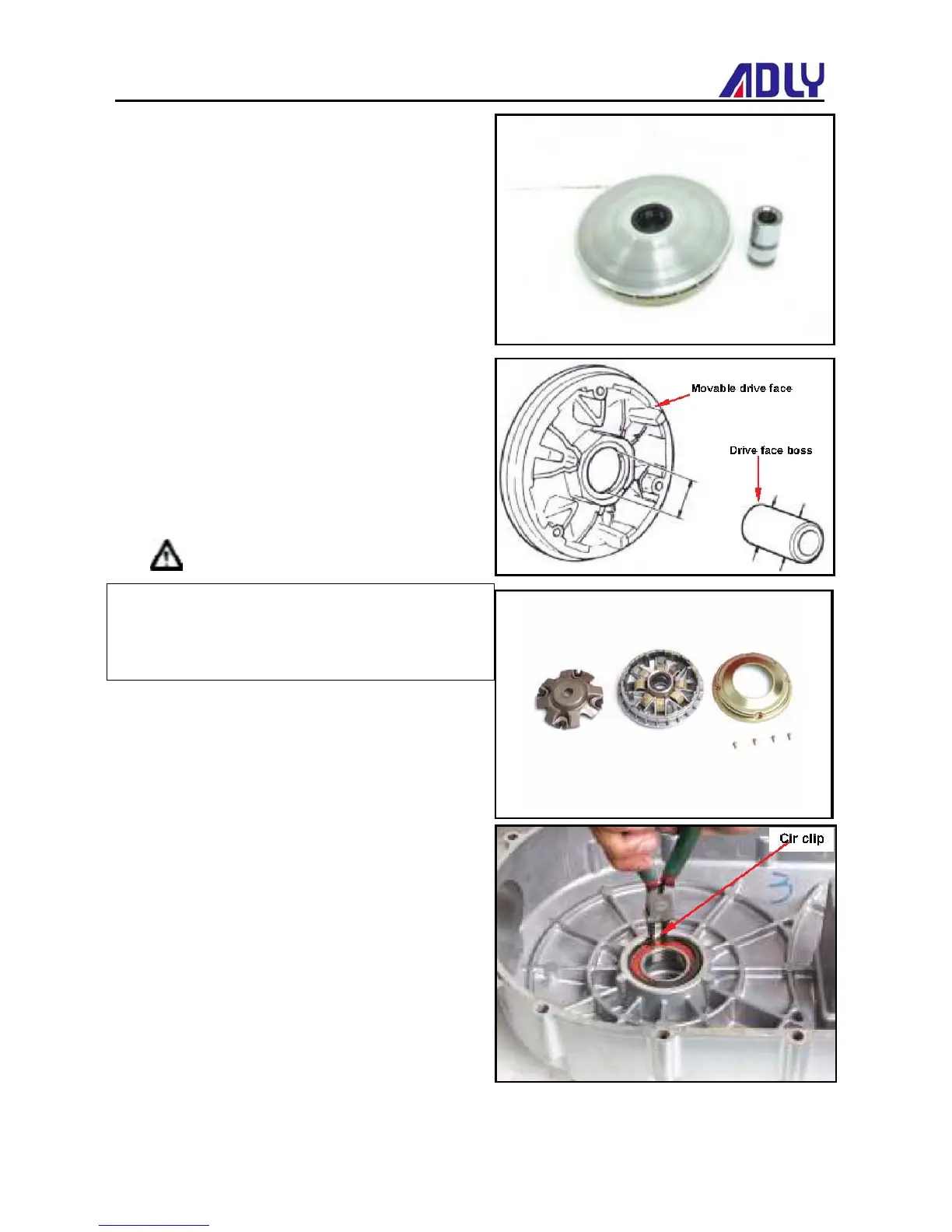

Check if drive face boss is worn or damaged and
replace it if necessary.
Measure the outer diameter of movable drive face
boss, and replace it if it exceed service limit.
Service limit: 35.950 mm
Measure the inner diameter of movable drive face,
and replace it if it exceed service limit.
Service limit: 36.055 mm
Reassembly/installation
Install weight rollers.
Caution
The weight roller two end surfaces are not
certainly same. In order to lengthen the roller life
and prevented exceptionally wears the occurrence.
Please end surface of the closure surface counter
clockwise assembles onto movable drive face.
Install ramp plate.
