Ch. 8 V-BELT DRIVING SYSTEM
8-8

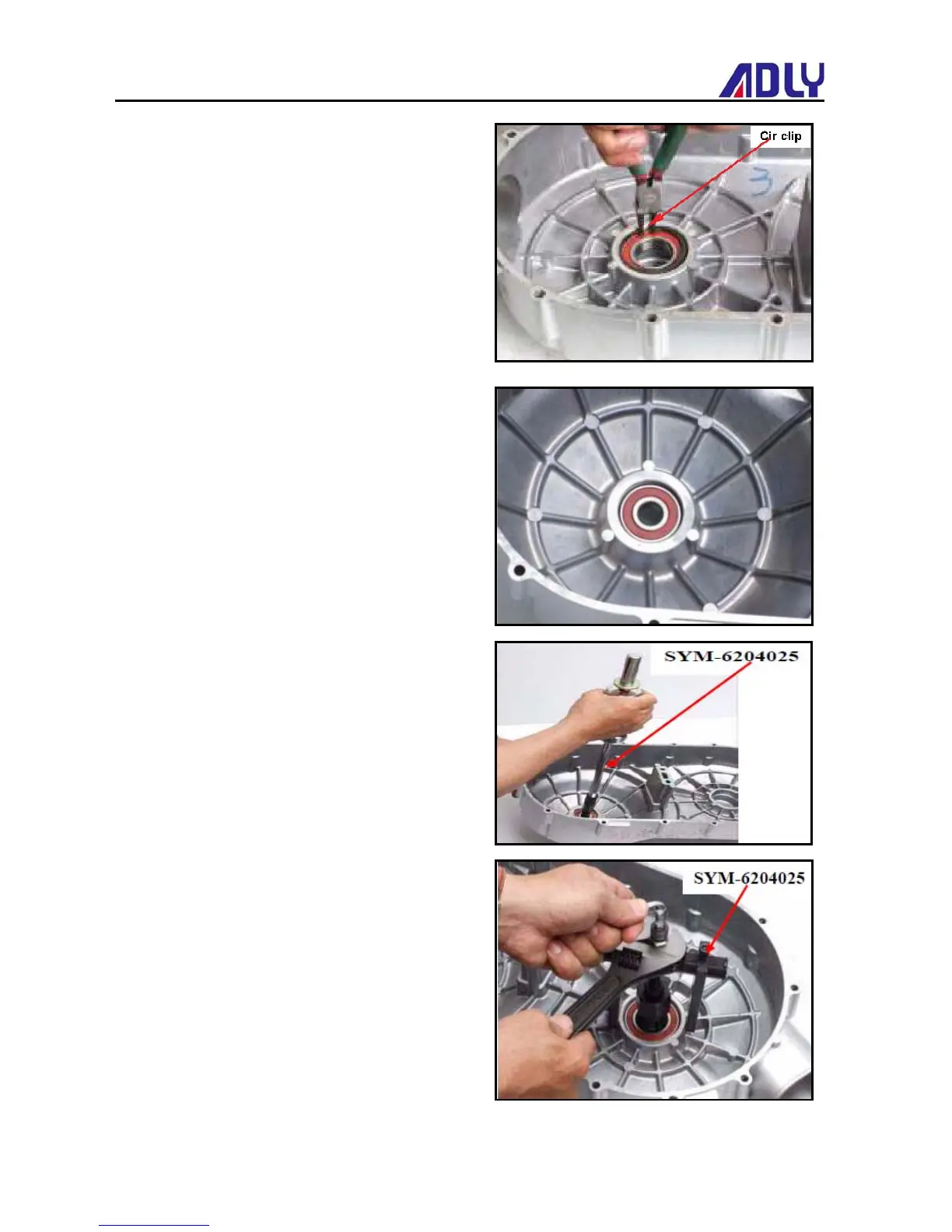

Left crankcase cover inspection
Remove cir clip with inner cir clip pliers
Check bearing on left crankcase cover.
Rotate bearing's inner ring with fingers.
Check if bearings can be turned in smooth and
silent，and also check if bearing outer ring is
mounted on cover tightly.
If bearing rotation is uneven
, noising or loose
bearing mounted
，then replace it.
Remove the bearing 6302 with inner bearing puller.
Tools number:SYM-6204025
Tools name: INNER BEARING PULLER.
Remove the bearing 6006 with inner bearing puller.
Tools number: SYM -6204025
Tools name: INNER BEARING PULLER.
