Ch. 8 V-BELT DRIVING SYSTEM
8-10

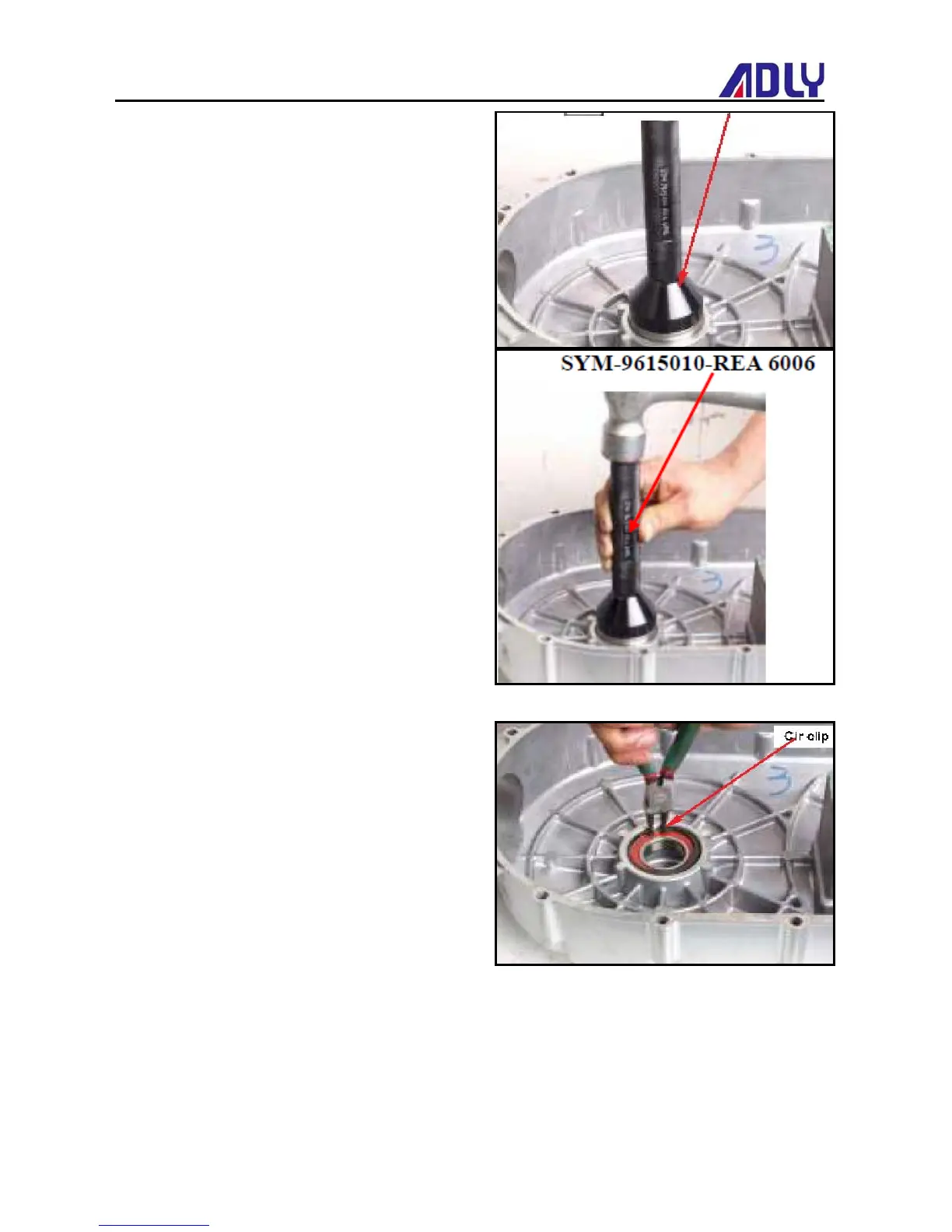

Make sure the bearing code and put the bearing.
Install the bearing 6006 with special tool
Tool name: L COVER FR BRG. 6006 bearing
driver
Tool NO. : SYM-9615010-REA 6006
Knock the bearing to the objected position.
Install the cir clip.
