50
Rear shock absorber adjustment can be
ma d e a cco r din g t o t he lo ad/r oad
conditions.

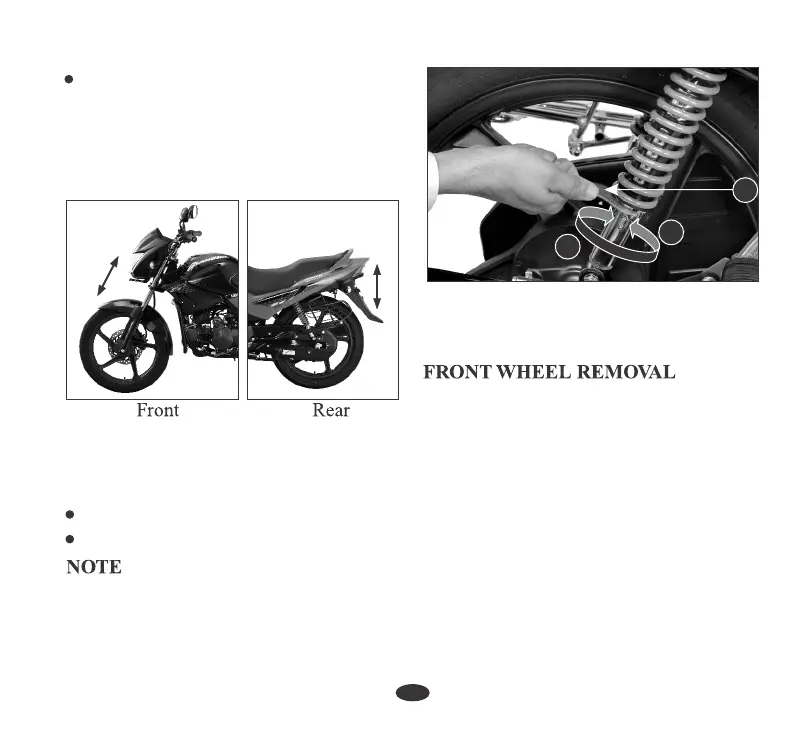

Rear shock absorber adjustment
(A) Stiffer (B) Softer
(1) Pin spanner
:
In direction A stiffer.
In direction B softer
Refer to the safety precautions on (page-29)
2. Disconnect the brake cable (1) from
brake arm (2) and brake panel (3) by
removing the front brake adjusting nut
(4).
4. Remove the axle nut (5).
1. Raise the front wheel off the ground.
5. Remove the axle (6) then remove the
wheel.
Check the rear shock absorber by
pushing hard downwards on rear grip
while the motorcycle is not parked on
stand. The suspension action should be
smooth and there should be no oil
leakage.
(Drum type)
Always adjust both the rear shock absorber
to the same position. Use the rear shock
absorber adjustment tool (Pin Spanner) (1)
available in the tool kit.
B
A
1
