52
5.
P
Adjust the brake (page 45) and drive
chain (page 40-42).
Always replace used split pins with new
ones.
Axle nut torque : 5.2 kgf-m.
Brake stopper arm nut torque : 2.2 kgf-m

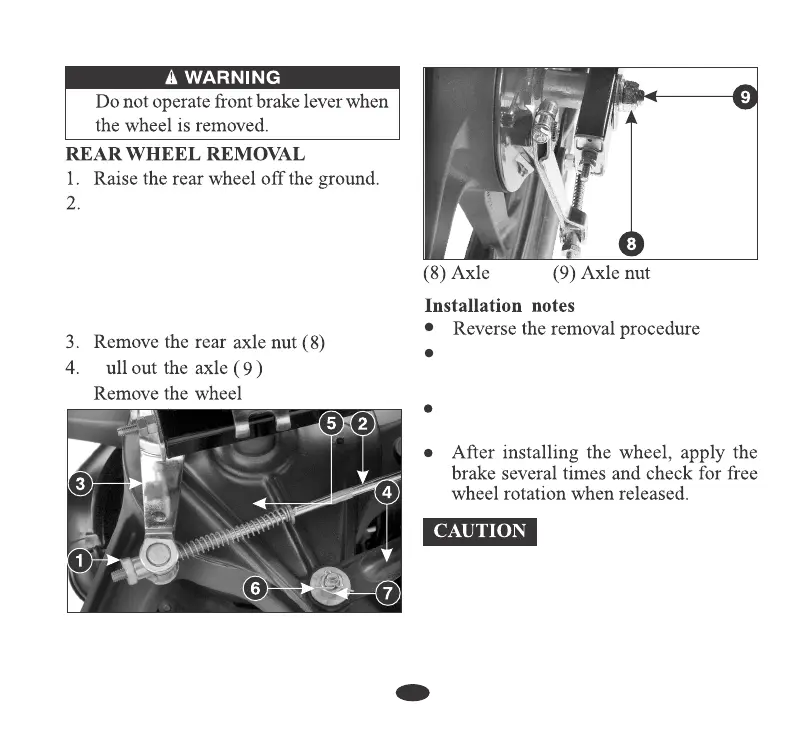

Remove the rear brake adjusting nut (1)
and disconnect the brake rod (2) from the
brake arm (3) by pushing down the brake
pedal. Disconnect the brake stopper arm
(4) from the brake pedal (5) by removing
split pin (6) and lock nut (7).
(1) Rear brake adjusting nut (2) Brake rod
(3) Brake arm (4) Brake stopper arm (5)
Brake panel (6) Split pin (7) Lock nut
