42
3
4
6
5
2

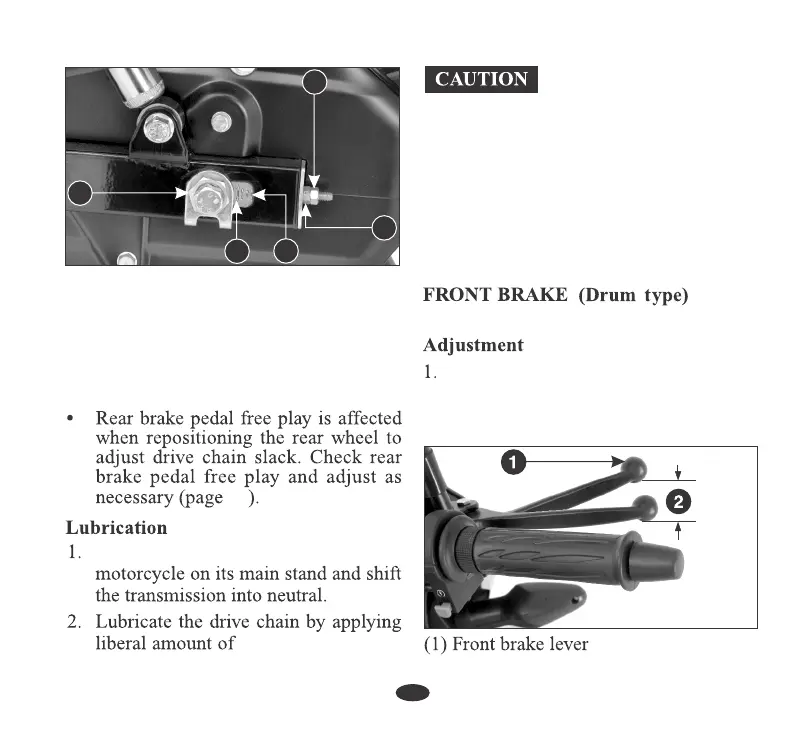

(3) Drive chain lock nut
(5) Index mark
(2) Sleeve nut
(6) Rear edge of adjusting slot
(4) Drive chain adjusting nut
45
Regular adjustment and lubrication as per
the maintenance schedule would ensure
high performance and longer life.
Visit Authorised Her o MotoCorp
workshop for inspection, cleaning,
lubrication and adjustment of drive chain
at every 2000 kms.
NOTE :
Refer to the safety precautions on (page-29)
Measure the distance of the front brake
lever (1) moves before the brake starts
to take hold. Free play (2) should be
10-20 mm at the tip of the brake lever.
Turn the engine “OFF”, park the
SAE # 90 grade oil.
(2) Free play 10-20 mm
