Reinstall the dowel pins and new gasket.
•
Reinstall the centrifugal filter cover with new
gasket.
•
Install the right crankcase cover, rider
footrest, muffler, kick starter pedal and
clutch cable.
•
Adjust the clutch cable free play (page 36).
•
Fill the crankcase with clean engine oil as
per specification.
•
Remove centrifugal filter cover (9) with
gasket & clean the centrifugal filter (10)
with non flammable or high flash point
solvent (kerosene).
33
NOTE
•
Ensure to replace gasket with new one once
removed.
•
Clean filters as specified in the maintenance
schedule.

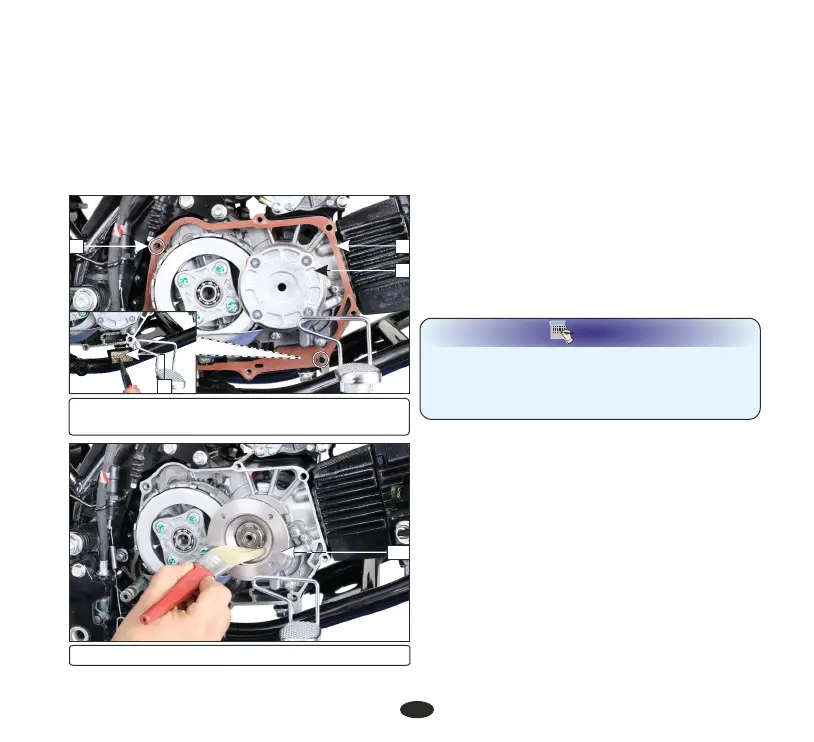

(6) Gasket (7) Dowel pins
(8) Oil filter screen (9) Centrifugal filter cover
(10) Centrifugal filter
10
9
7
• Remove the gasket (6) and dowel pins (7)
(2 nos.).
• Remove the oil filter screen (8) and wash it
with non flammable or high flash point
solvent (kerosene).
• Reinstall the filter screen with the sharp
edge inside facing inwards.
AIR CLEANER
T element is viscous type, it he air cleaner
should be at regular intervals replaced
(page 27). Early replacement may be
required when riding in unusually wet or dusty
area.
•
Remove the left side cover (1) by removing
side cover screw (2). Pull out lug (3) from
the grommet and slide the cover as per
direction indicator (4).
Air cleaner element inspection
Ÿ Remove the air cleaner cover screws (5)
and the cover (6).
8
6
