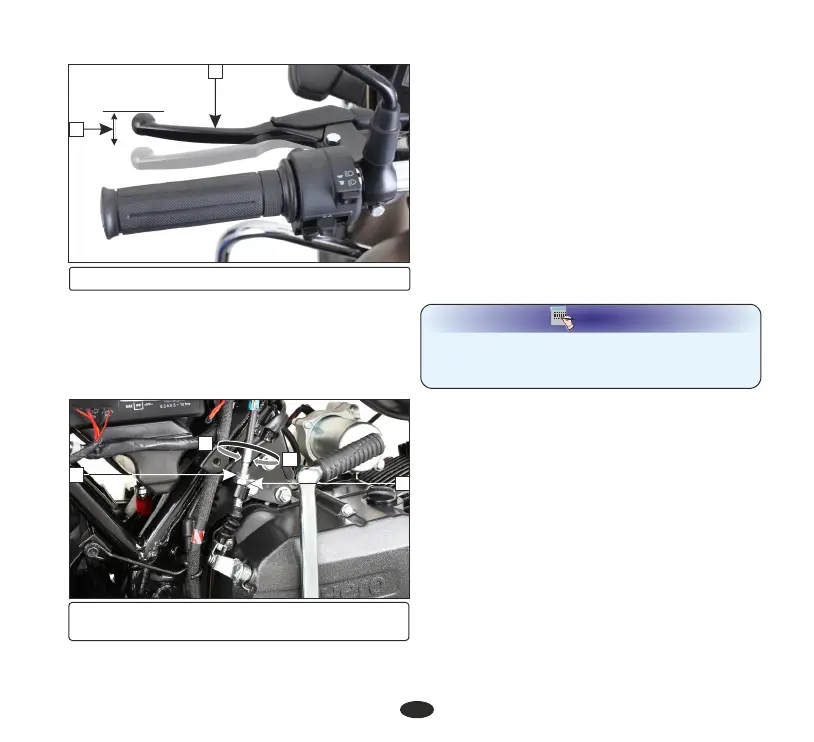

(1) Free play: 10-20 mm (2) Clutch lever
2
1
•
Remove the right side cover (page 51).
•
To adjust the free play, loosen the lock nut
(3). Turn the adjusting nut (4) to obtain the
specified free play. Tighten the lock nut and
check the adjustment.
3
A
B
(3) Lock nut (4) Clutch cable adjusting nut
(A) Decrease free play (B) Increase free play
If proper adjustment cannot be obtained or the
clutch does not work correctly, visit your
Authorised workshop.Hero MotoCorp
NOTE
•
Check for clutch cable model. Use genuine
clutch cables.
•
Check the clutch cable for kinks or signs of
wear that could cause sticking or failure.
•
Check for clutch cable routing.
Other checks
•
Start the engine, press the clutch lever and
shift into gear. Make sure the engine does
not stall, and vehicle does not creep.
Gradually release the clutch lever and open
the throttle. The vehicle should start
smoothly and accelerate.
THROTTLE OPERATION
Cable inspection
throttle body. If the cable is k cinked, hafed or
improperly routed, it should be replaced or
rerouted. Standard throttle grip free play (1)
is approximately 2-6 mm of grip rotation.
Check at full left and full right steering
positions. Inspect the condition of the throttle
cable from the throttle grip down to the
Check for smooth rotation of the throttle grip
from the fully open to the fully closed position.
