When one applies the integrated/rear brake
pedal, front & rear brakes activate jointly.
Brakes are items of personal safety and should
always be maintained with proper
adjustments.

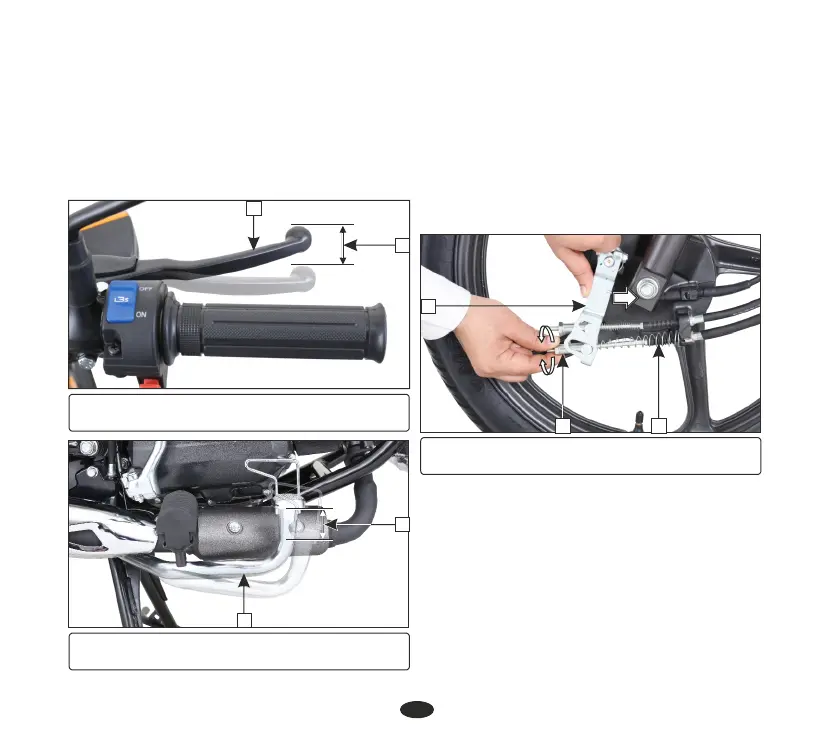

BRAKES
(a) Brakes (Integrated braking system)
(2) Integrated/Rear brake pedal
(3) Free play 20-30 mm
(1) Front brake lever
(3) Free play 10-20 mm
1
3
2
3
Ÿ Turn the first adjuster nut (5) till you cannot
turn it by hand.
(b) Front brake cable (A) on “F” side
Adjustment
The distance, the front brake lever (1) and
integrated brake pedal (2) moves before each
brake starts to engage is called free play (3).
Ÿ Push the integrated brake arm (4) by hand
in the direction as shown.
(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
Ÿ If the free play is out specification turn the
adjuster nut to obtain desired free play.
(c) Integrated brake cable (B) on “C” side
Ÿ Push the integrated brake arm (4) by hand
in the direction as shown.
FREE PLAY: 10-20 mm
Ÿ Check the free play of front brake lever.
Ÿ Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
Adjustment
(i)
(ii)
4
5
F
C
A
