46

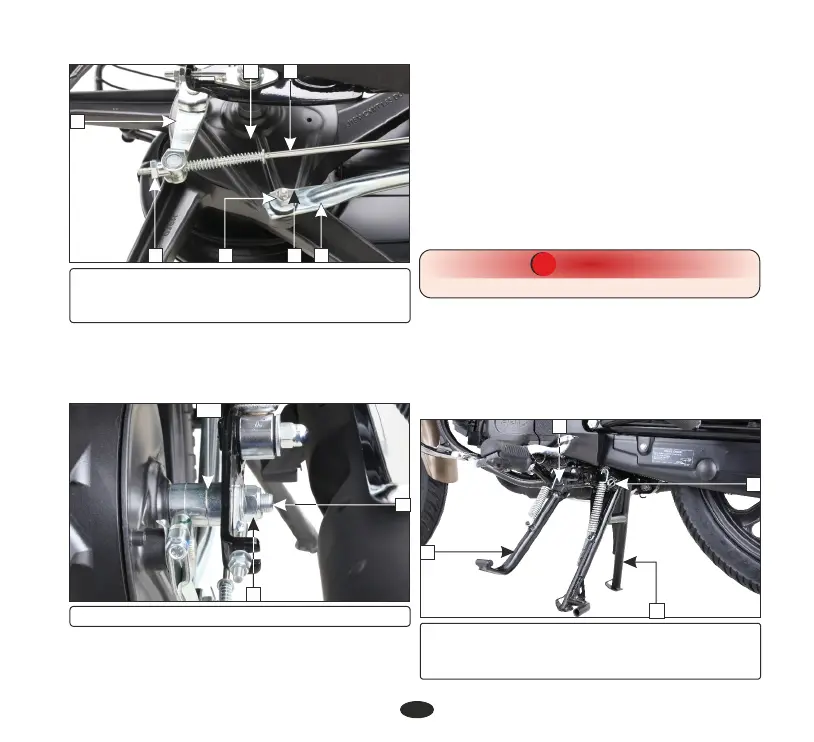

(1) Rear brake adjusting nut (2) Brake rod
(3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
(8) Axle nut (9) Axle (10) Collar
10
8
9
Installation
2.2 kgf-m
Axle nut torque: 5.4 kgf-m.
•
Reverse the removal procedure
Brake stopper arm nut torque:
Ÿ Adjust the rear brake free play (page 42)
and drive chain slackness (page 38).
•
After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
•
Remove the rear axle nut (8).
•
Pull out the axle (9) and collar (10).
•
Remove the wheel.
CAUTION
!!
Always replace used split pins with new ones.
MAIN/SIDE STAND LUBRICATION
• Park the vehicle on the level surface.
• Check the main/side stand return spring for
damage or loss of tension.
• Check the main stand (1)/side stand (2)
for freedom of movement.
2
4
(1) Main stand (2) Side stand
(3) Side stand pivot bolt
(4) Rear brake pedal/Main stand pivot
3
6 4
2
5
71
1
3
