45
Ÿ Disconnect the front brake cable (3) and
integrated brake cable (4) from the
integrated brake arm (5) and brake panel
(6) by removing the front brake adjusting
nut (7) and integrated brake adjusting nut
(8).

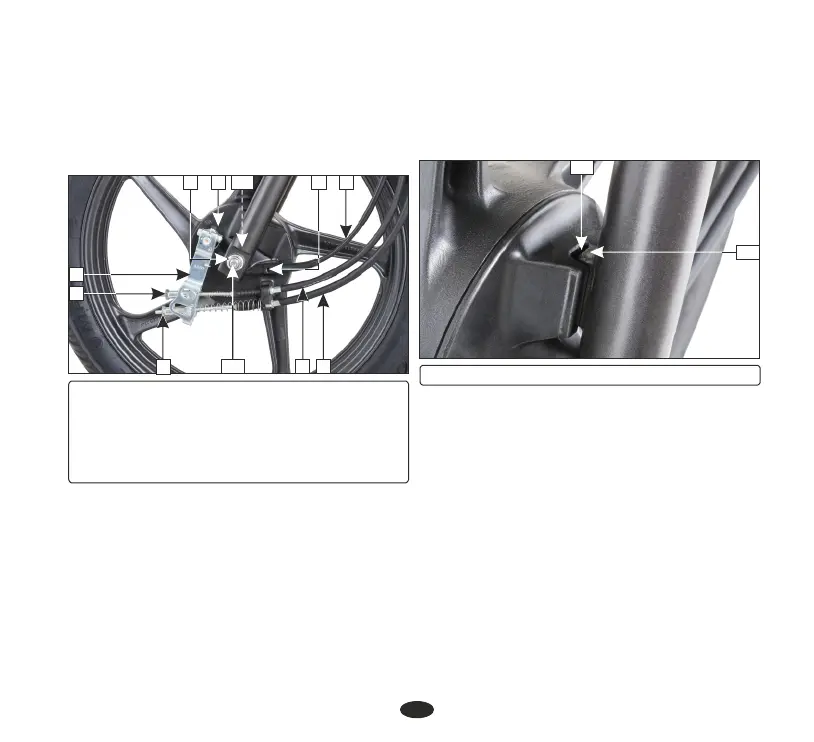

(1) Speedometer cable (2) Tab
(3) Front brake cable (4) Integrated brake cable
(5) Brake arm (6) Brake panel
(7) Front brake adjusting nut
(8) Integrated brake adjusting nut
(9) Axle nut (10) Axle (11) Side collar
•
Install the front wheel by ensuring that the
lug (12) on the left fork is located in the slot
(13) in the brake panel.
•
Remove the wheel.
•
Remove the axle nut (9).
•
Remove the axle (10) and side collar (11).
•
Tighten the axle nut.
•
Reverse the removal procedure.
Installation
Axle nut torque: 5.4 kgf-m
3
5
1211
8
4
9
10
•
After installing wheel, apply the brake
several times and check for free wheel
rotation when released.
•
Adjust the front brake free play and
integrated brake free play (page 41).
(12) Lug (13) Slot
• Remove the rear brake adjusting nut (1)
and disconnect the brake rod (2) from the
brake arm (3) by pushing down the brake
pedal. Disconnect the brake stopper arm
(4) from the brake panel (5) by removing
split pin (6) and lock nut (7).
(b) Rear wheel
Removal
• Support the vehicle securely on the main
stand and raise the rear wheel off the
ground.
13
12
7
6
