42
•

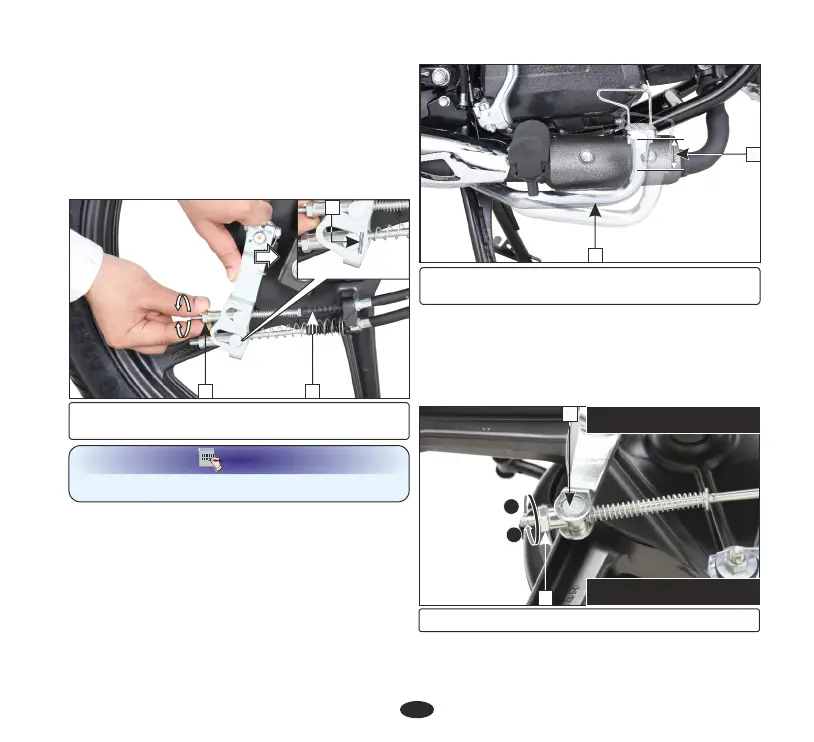

After ensuring the gap, turn the second
adjuster nut counterclockwise by half
rotation.
FREE PLAY: 20-30 mm
•
Check the free play of rear brake pedal.
•
If the free play is out specification turn the
adjuster nut to obtain desired free play.
(6) Second adjuster nut (7) Joint
(i) Decrease free play (ii) Increase free play
NOTE
“F” & “C” is marked on integrated brake arm.
•
Park the vehicle on its main stand.
(d) Rear brake inspection
Adjustment
Free play (2) should be 20-30 mm.
•
Measure the brake pedal (1) free play
before the brake starts to take hold.
(1) Rear brake pedal
(2) Free play: 20-30 mm
•
Make sure that the cut-out on the adjusting
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
•
If adjustment is necessary, turn the rear
brake adjusting nut (3).
A
B
(A) Decrease free play (CW)
(B) Increase free play (ACW)
3
CW- Clockwise, ACW- Anticlockwise
(3) Adjusting nut (4) Brake joint pin
(i)
(ii)
B6
F
C
7
4
