Apply the brake several times and check for
free wheel rotation when released.

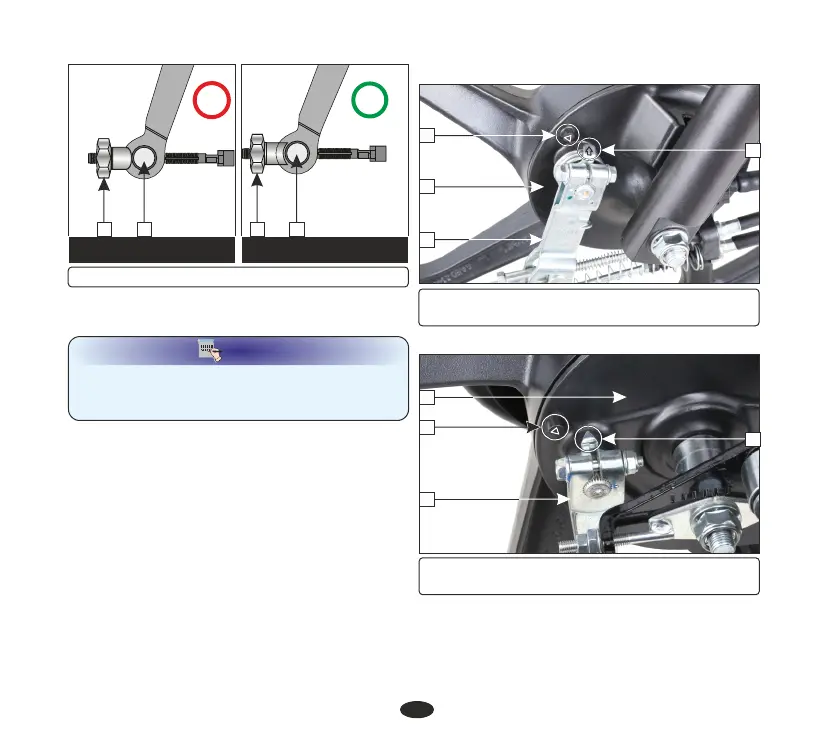

(3) Adjusting nut (4) Brake joint pin
ü
X
(A) Cut-out not seated (B) Cut-out seated
3
44
3
NOTE
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
(e) Brake wear indicators
When the brake is applied, an arrow (1),
fixed to the brake arm (2), moves towards a
reference mark (3) on the brake panel (4). If
the arrow aligns with the reference mark on
full application of the brake, the brake shoes
must be replaced.
(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
Front brake wear indication
(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
Rear brake wear indication
2
4
1
3
2
3
4
1
