HERO SUPER SPLENDOR PROGRAMMED FI - OIL FILTER SCREEN; Oil Filter Screen Cleaning

34
•
Apply engine oil on engine oil filter element
before installation.
•
Make sure that O-ring is properly seated.
•
When the engine oil filter element replaced
always replace the O-ring with the new one.
•
Inspect and replace engine oil filter element
as specified in the maintenance schedule.
NOTE
• Installation is in the reverse order of
removal.
OIL FILTER SCREEN
•
Drain the engine oil thoroughly (page 33).
•
Remove the side stand switch screw (1).
•
isconnect the lutch able ( )D c c 2 .
•
Remove the exhaust muffler (3), rider
footrest assembly with side stand (4), ick k
s p and right crankcase cover tarter edal (5)
(6).
•

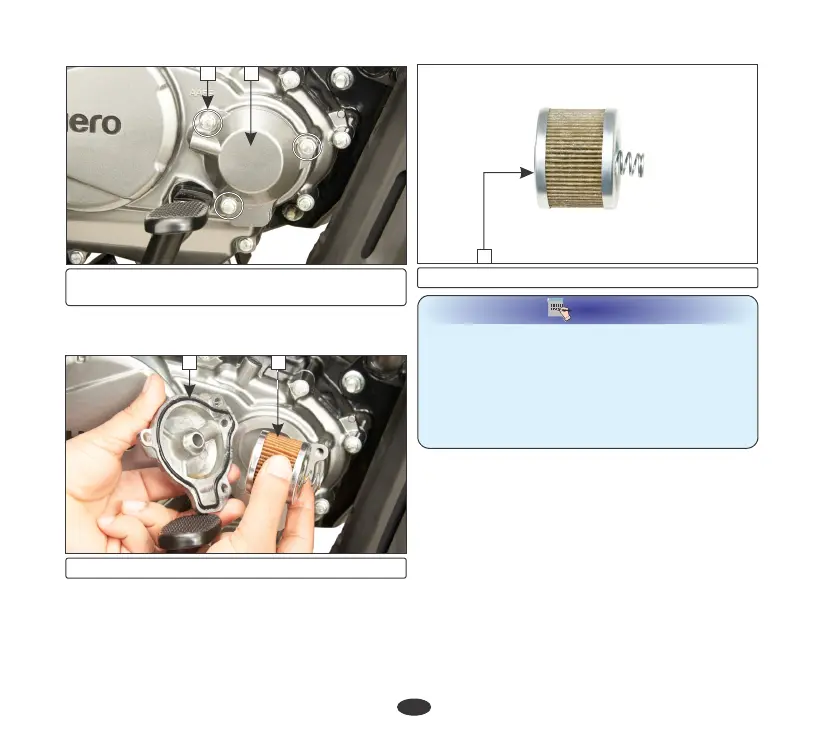

Remove the engine oil filter element (4)
from the cover.
(3) O-ring (4) Engine oil filter element
4
(4) Engine oil filter element
4
•
Replace the engine oil filter element (4).
(1) Mounting bolts
(2) Engine oil filter element cover
21
3
