57
FUSE REPLACEMENT
Battery installation
•
Reinstall in the reverse order of removal. Be
sure to connect the positive (+)ve terminal
first, then the negative (-)ve terminal.
•
Check all fasteners are secured properly.
Fuse type: Blade fuse
Spare fuse (4) : 15A, 10A
Circuit fuse (3) : 15A, 10A, 10A

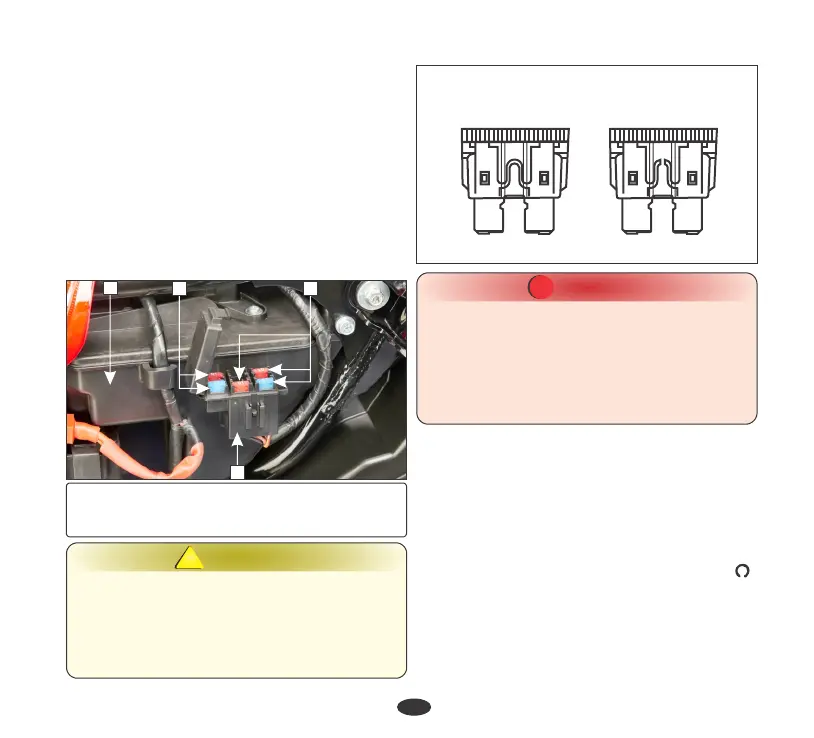

Fuse box (1): Location: Mounted on the air
cleaner assembly (2) left hand side.
1
(1) Fuse box (2) Air cleaner assembly
(3) Circuit fuse: 15A, 10A, 10A
(4) Spare fuse: 15A, 10A
2
4 3
WARNING
!!
• Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
• Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
CAUTION
!!
•
Do not attempt to start or ride the vehicle
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
•
Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows:
The stop lamp switch (1) must be adjusted so
that stop lamp will glow when rear brake is
applied. Rear brake free play (page 46)
•
Turn the ignition switch to the “ON” ( )
position.
STOP LAMP SWITCH
To Next Page
