51

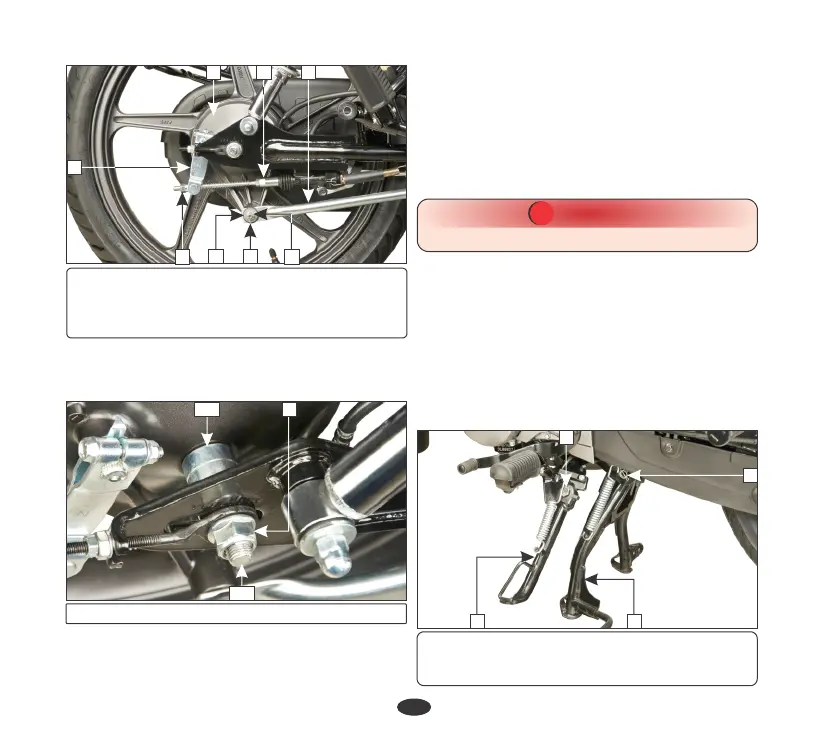

• Pull out the axle (10) and collar (11).
• Remove the wheel.
• Remove the rear axle nut (9).
(9) Axle nut (10) Axle (11) Collar
(1) Rear brake adjusting nut (2) Brake rod
(3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
(8) Washer
2 4
3
5
6
7
CAUTION
!!
Always replace used split pins with new ones.
MAIN/SIDE STAND LUBRICATION
•
Clean and lubricate the side stand pivot bolt (3)
and rear brake pedal/main stand pivot (4).
•
Check the main/side stand return spring for
damage or loss of tension.
•
Check the main stand (1)/side stand (2)
for freedom of movement.
•
Make sure the side/main stand is not bent.
•
Park the vehicle on the level surface.
(1) Main stand (2) Side stand
(3) Side stand pivot bolt
(4) Rear brake pedal/Main stand pivot
Axle nut torque: 5.2 kgf-m
Installation
•
Reverse the removal procedure.
2.2 kgf-m
Brake stopper arm nut torque:
•
Adjust the rear brake free play (page 46)
and drive chain slackness (page 40).
•
After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
4
1
8
10
911
3
12
