• When attaching the upper portion of the CMA, ensure that the front tab is inserted into the inside middle
hole and the second tab is insert into the inside rst hole on the CMA bracket.
6.
From the Lower cable management system arm, line up the CMA handle with the CMA snap location.

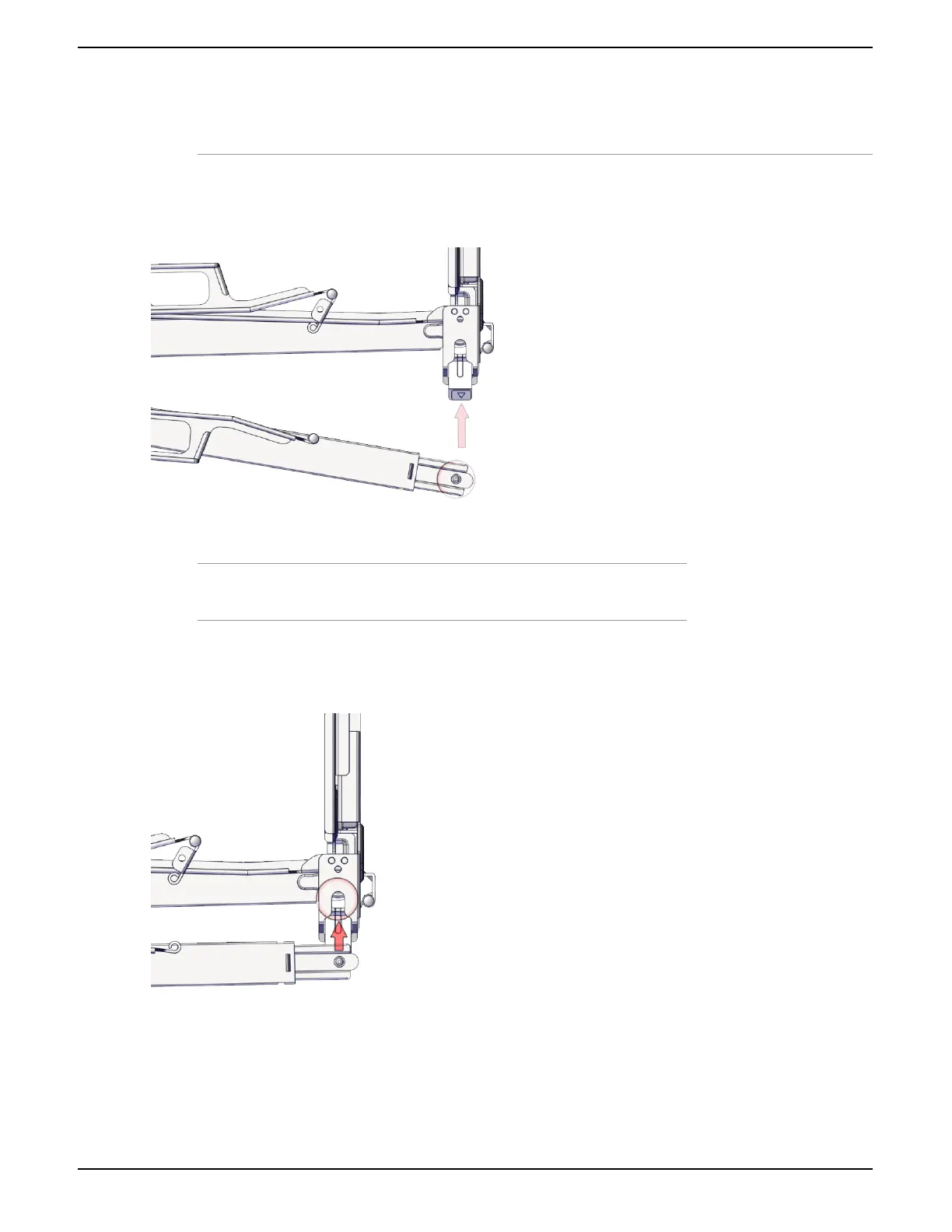

Figure 33: Snapping the Lower CSM Handle into the Upper Snap Location
Note: The CMA snap location for the Lower arm is attached to the Upper CMA
arm.
7.
Press the CMA handle rmly into the snap location until you hear an audible click.
Figure 34: Securing the Lower CMA Handle within the Upper Snap Location
48
Installation Guide 11 Installing the 4U60 Storage Enclosure
