HGST G460-J-12 Installation Guide

2.
From the enclosure handle, pull the enclosure out until the rail kit is fully extended.

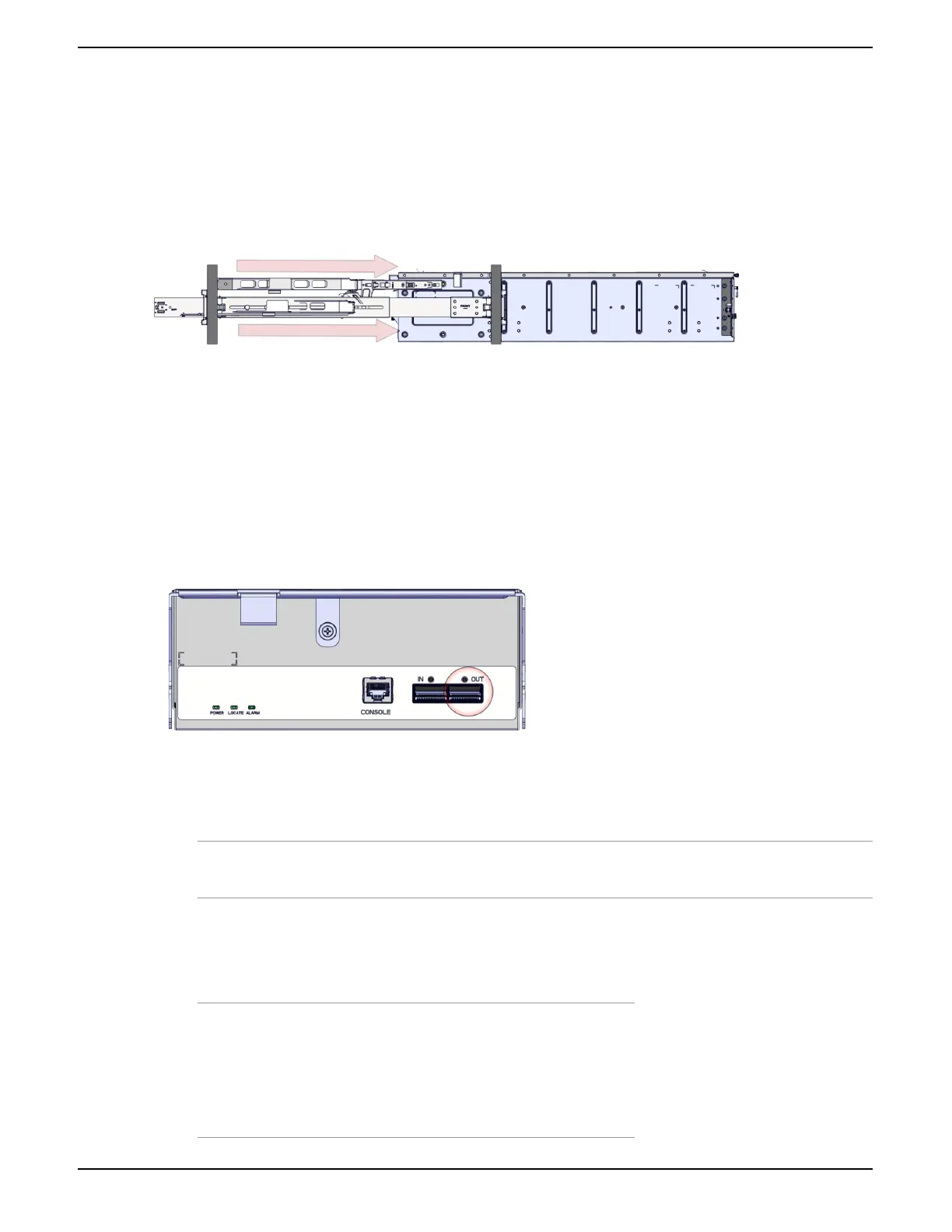

Figure 46: Extended Enclosure
3.
From the rear of the enclosure, plug the expansion cable into the ESM port labeled Out.
Figure 47: Enclosure Storage Module (Out)
4.
Loosely run the power cord through the cable management assembly (CMA).
Note: By the CMA design, the cables are intended to be installed into the CMA arm on the side of the PSU
or EMS.
5.
At the elbow of the CMA, ensure you leave about two inches of slack in the power cord.
6.
Using Velcro straps, attach the cable to the CMA.
7.
To ensure the expansion cable has the proper amount of slack, push the enclosure into the rack.
Note:
• If the cables appear to be too tight, increase the amount of slack in
the cable.
• If the cables appear to be too loose, decrease the amount of slack in
the cable.
57
Installation Guide 11 Installing the 4U60 Storage Enclosure
