June 2015 PLT-01952, Version: A.2
Page 7

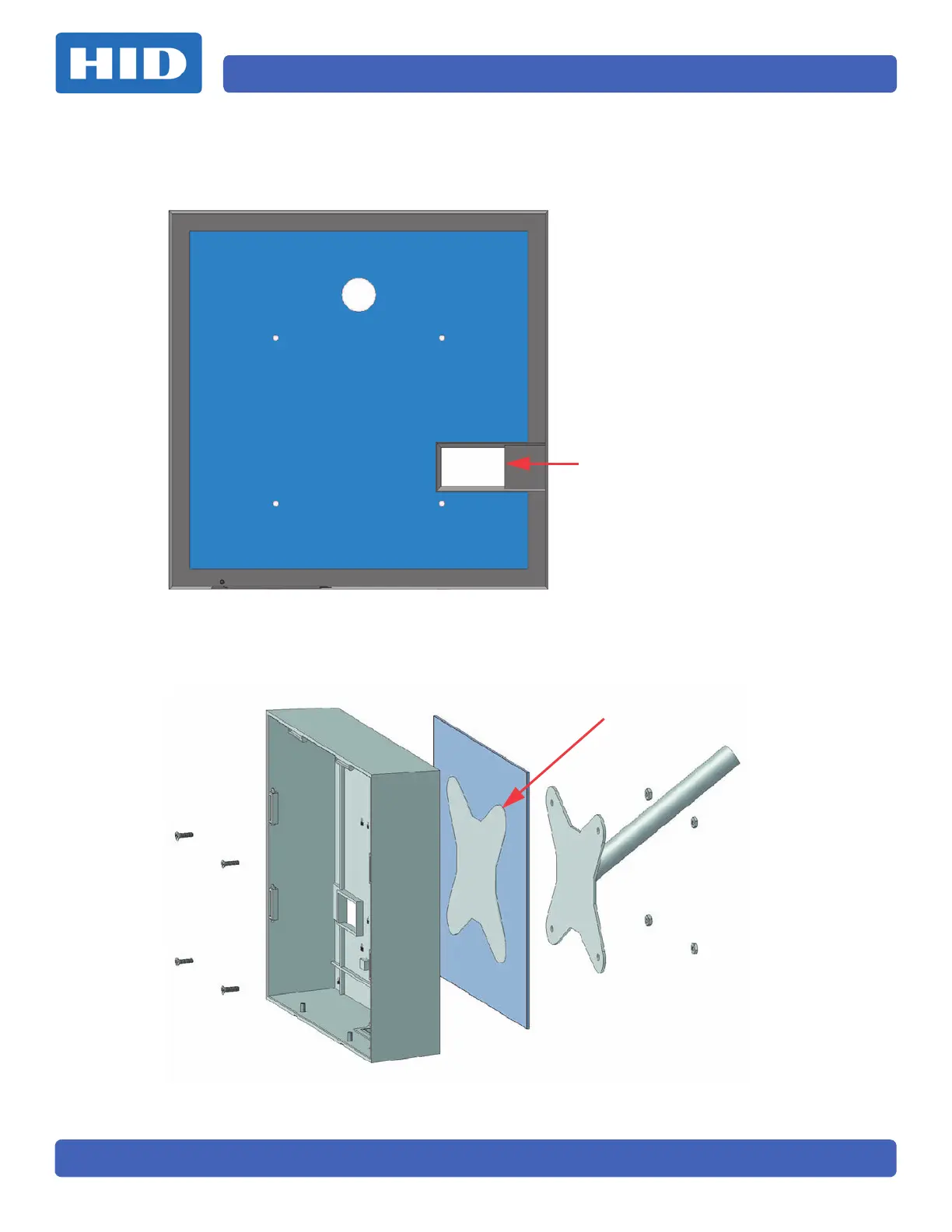

4. The gasket must be modified to match the holes created on this backbox. At a minimum the
gasket must not cover the square opening shown below.
Note: This is done with scissors.
5. It is recommended that the gasket be modified to match the area between the mount and the
box, to create a seal against the elements (example below). Attach the backbox with the
gasket to the mount with the 4 screws provided as shown below.
Trim Gasket to match the
contact area
