June 2015 PLT-01952, Version: A.2
Page 9

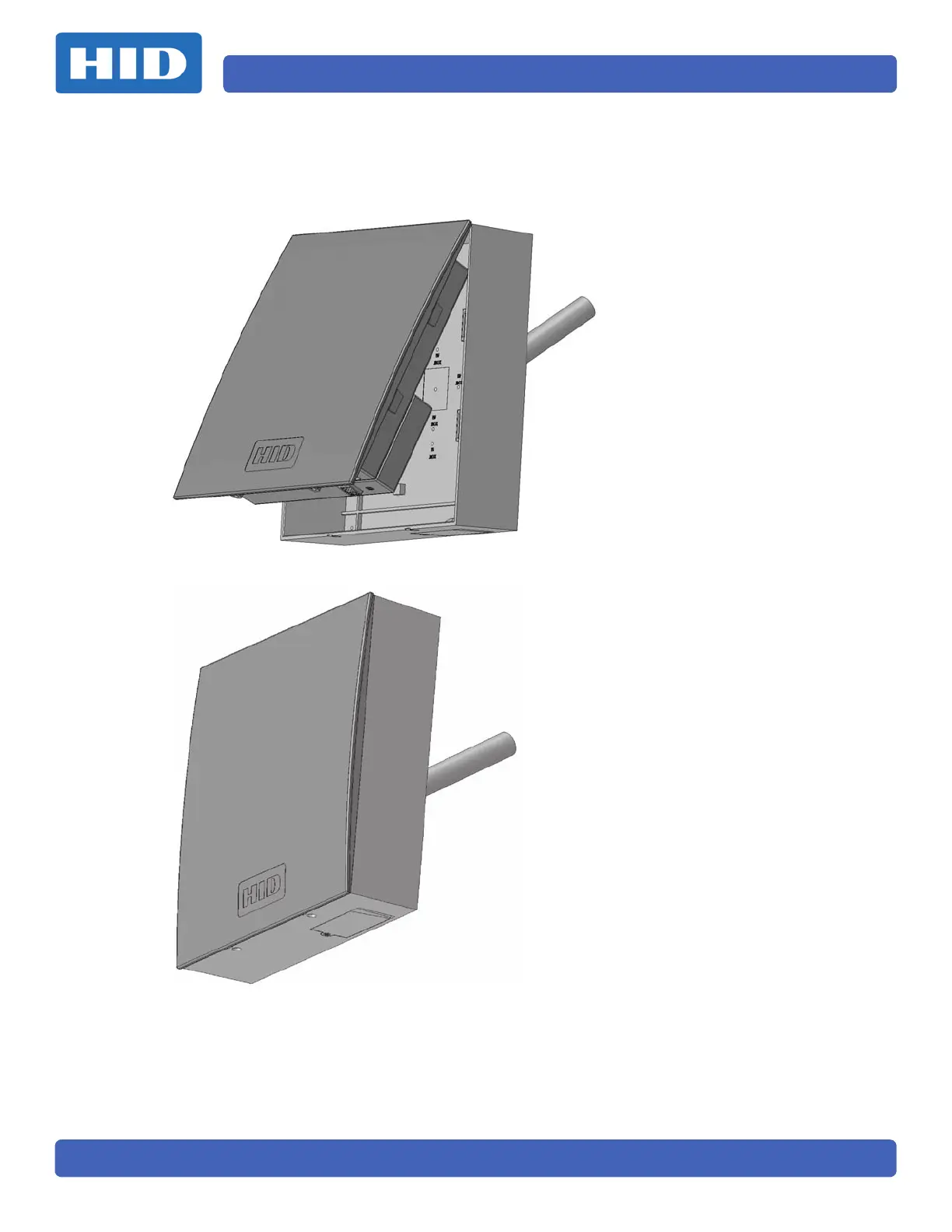

3.4 Installing the Reader to the Backbox
1. Install the reader to the backbox. It is hinged on the top and should fit snugly at the bottom.
Note: The sides of the Reader will snap as the features align.
2. Use the 2 screws that were removed earlier to secure at the bottom of the assembled piece.
