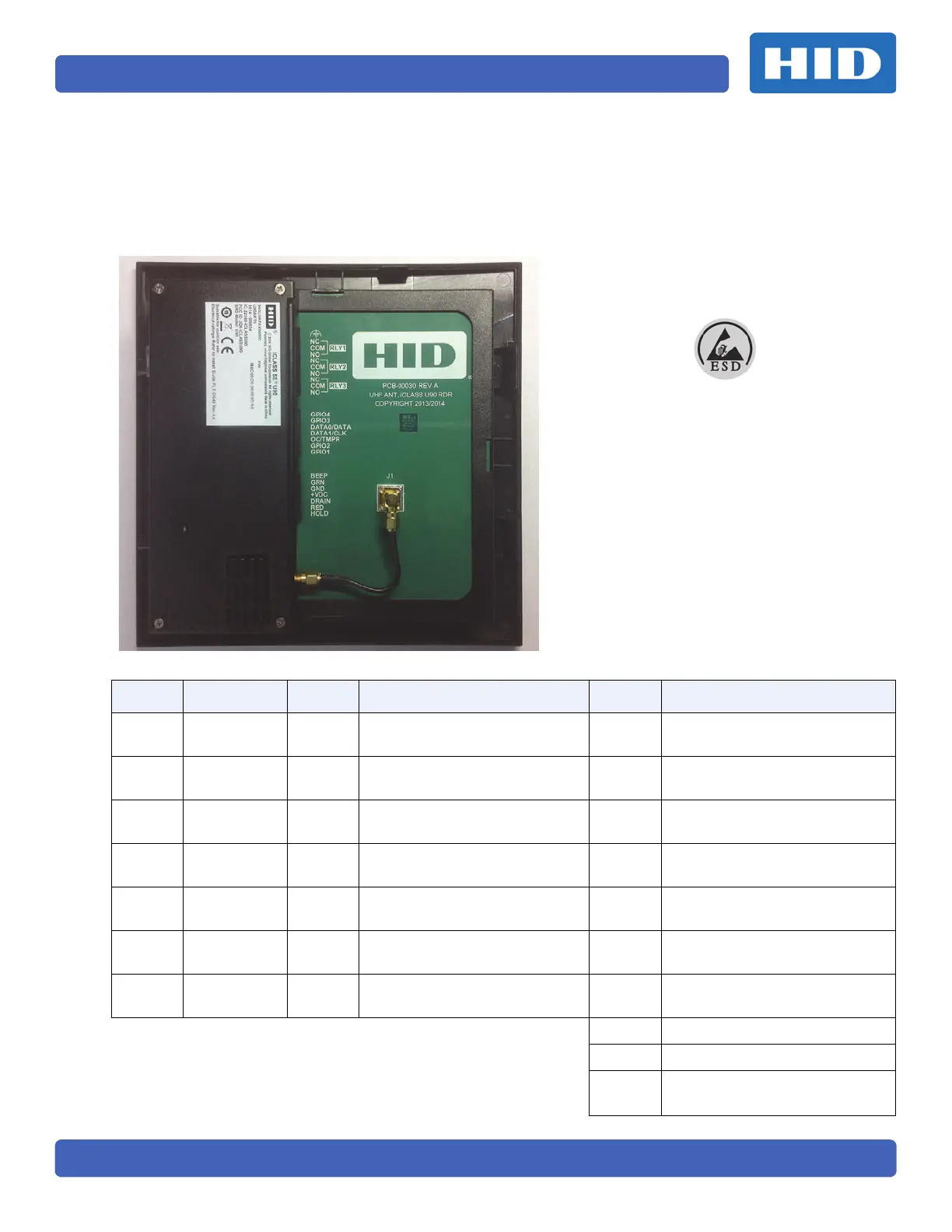

3.3 Wiring
After the cable is brought through the backbox (conduit hole) and connected to the reader the hole
must be sealed with RTV silicone to weatherproof the reader.
Note: We recommend the use of liquid tight conduit and fittings. RTV silicone can also be used an
alternative.
Termina l Description Termi n al Description Termin a l Description
P1-1
Beeper Input
(BEEP)
P2-1 GPIO4 (RS485-Y / TXA) P3-1
Functional Earth Ground
(symbol)
P1-2
LED Input
(GRN)
P2-2 GPIO3 (RS485-Z / TXB) P3-2 Normally Closed (NC) - Relay 1
P1-3
Ground
(GND)
P2-3
**Wiegand Data 0 / Data
(DATA0/DATA)
P3-3 Common (COM) - Relay 1
P1-4 +VDC P2-4
**Wiegand Data 1 / Clock
(DATA1/CLK)
P3-4 Normally Open (NO) - Relay 1
P1-5
Unused
(DRAIN)
P2-5
*Open Collector Output /
Tamper (OC/TMPR)
P3-5 Normally Closed (NC) - Relay 2
P1-6
LED Input
(RED)
P2-6 GPIO2 (RS232-R / RS485-RXB) P3-6 Common (COM) - Relay 2
P1-7
Hold Input
(HOLD)
P2-7 GPIO1 (RS232-T / RS485-RXA) P3-7 Normally Open (NO) - Relay 2
* Tamper Output - When activated, output synchronizes to ground (default).
** Dependent upon reader configuration. See the HTOG for Wiegand and
Clock-in-Data configurations.
OSDP: GPIO1 and GPIO2 are RE-485 lines that carry OSDP messages.
GPIO3 and GPIO4 are an auxiliary input and output respectively, which can be
monitored/controlled via OSDP.
P3-8 Normally Closed (NC) - Relay 3
P3-9 Common (COM) - Relay 3
P3-10 Normally Open (NO) - Relay 3
ATTENTION
Observe precautions for handling
ELECTROSTATIC SENSITIVE DEVICES
