3.5 Initial Aiming
The Reeder should be aimed at a point in the center of the vehicle lane 6meters (20 feet) from the
reader. This will result in approximately a 20° downward angle. This setting will work in most
applications. Fine adjustments can be made during performance testing.
3.6 Installation Examples

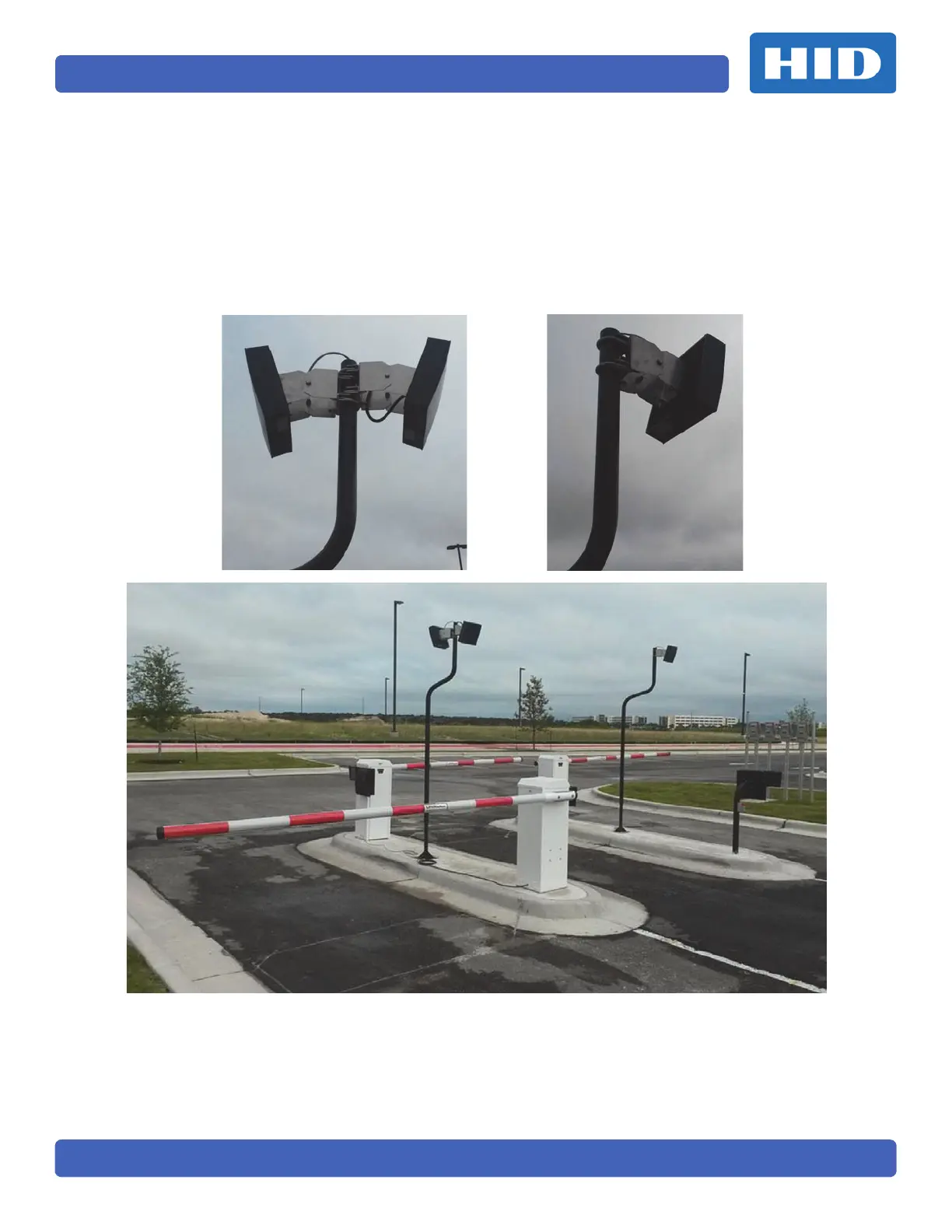

The following is an example of a U90 installation.
