Technobeam
®
User Manual Cleaning the Internal Components 6-17

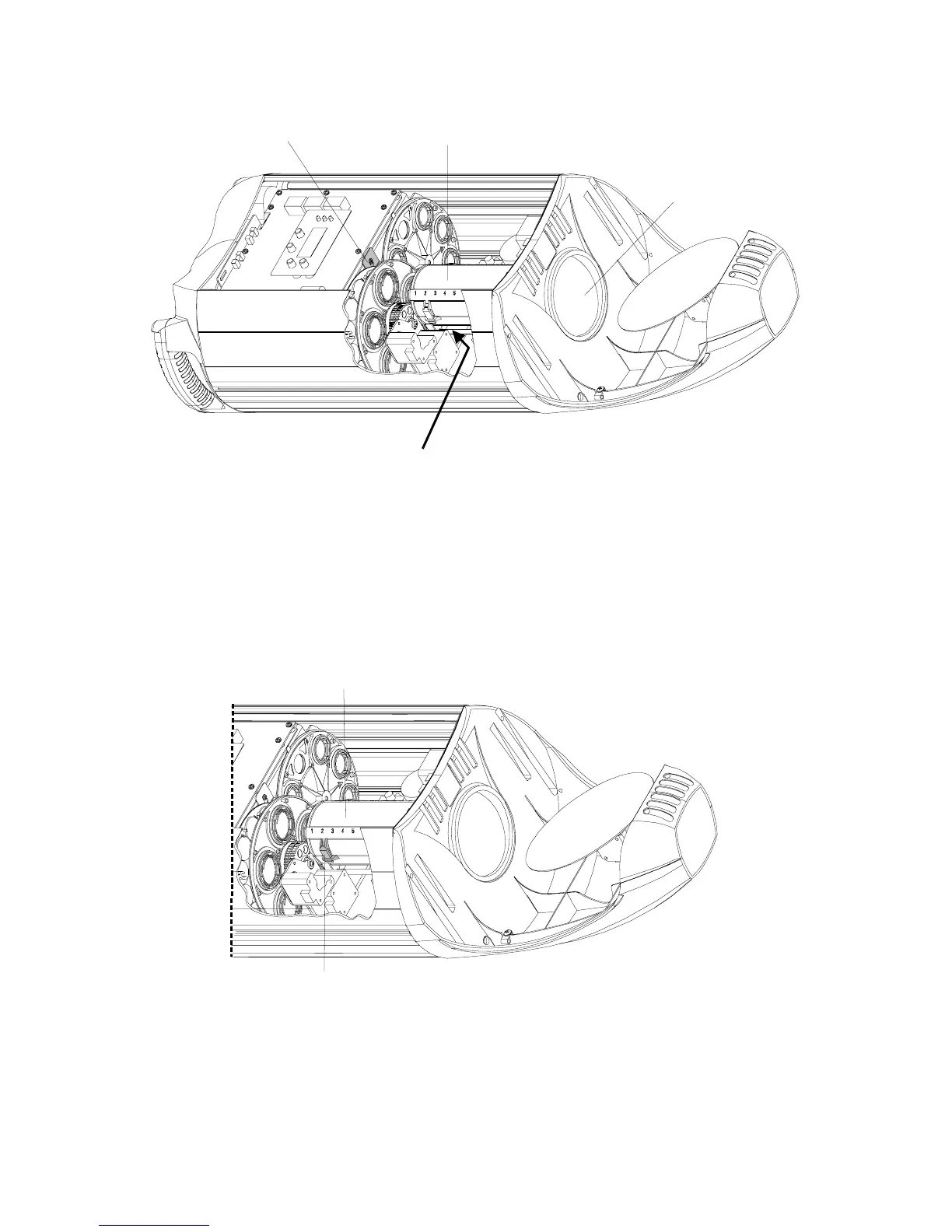

Figure 6-20. Location of the anti-reflective glass, lenses and hot mirror.
3. If the black dim flags (located between the lens tube and the anti-
reflective glass) are closed, carefully use your fingers to open them to
clean the inside of the glass.
4. Locate the lens tube as shown in Figure 6-21:
Figure 6-21. The lens tube contains the zoom lenses.
5. Carefully lift the cover from the lens tube. It has two latches on each
side that secure it in place.
Anti-reflective glass
Lens tube
Hot mirror assembly
(shaded)
Focus drive screw
under lens tube (turn
to move tube for easier
access)
Lens tube
Latches (4)
