Film Feed Controller Card Description

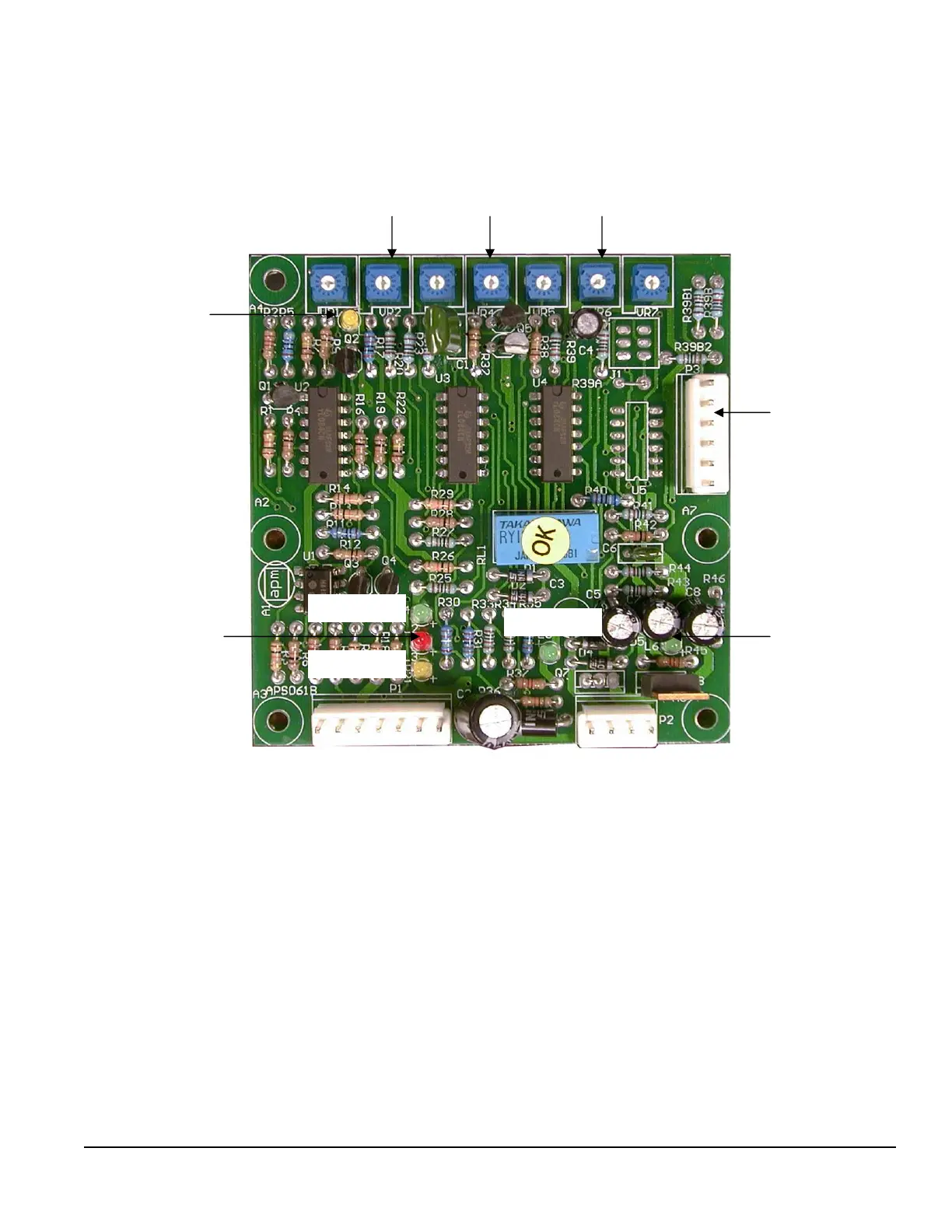

The layout of the film feed controller card is shown below.
Exhibit 2-9: Description of the Film Feed Controller Card
1. VR1, VR2, and VR3 do not have any functions.
2. VR4 determines the maximum speed of the pre-stretch motor.
Recommended setting is 70%.
3. VR5 sets the pre-stretch motor speed in manual feeding. Turn clockwise to increase;
counter-clockwise to decrease.
Recommended setting is 100%; or max out.
4. VR6 is the “tight” film tension adjustment to achieve the best linear control from the dancer
bar. Turn clockwise to increase; counter-clockwise to decrease.
Recommended setting is 60%.
VR1
VR2
VR3
VR4
VR5
VR6
VR7
L1: Yellow
L4: Green
L2: Red
L3: Yellow
L5: Gr
een
L6: Green
P1: Connector 1
P2: Connector 2
P3:
Connector 3
