PREDATOR XS TURNTABLE STRETCH WRAPPER OPERATION MANUAL
HIGHLIGHT INDUSTRIES, INC. ● 2694 PRAIRIE SW; WYOMING; MI 49519 ● 1-800-531-2465
III-3
FILM LOADING
FILM LOADINGFILM LOADING
FILM LOADING
Follow procedure below to thread film onto the carriage:
1. Rotate the handle and open the film carriage.
2. Pull six (6) feet of film off the film roll.
3. Follow the diagram below and “thread” the 6-foot film tail all the way through the rollers.
4. Close the film carriage and rotate the handle in the opposite direction to lock.
5. Attach the film securely to the pallet. Tying the end of the film in a knot often helps to
secure the film to the pallet.

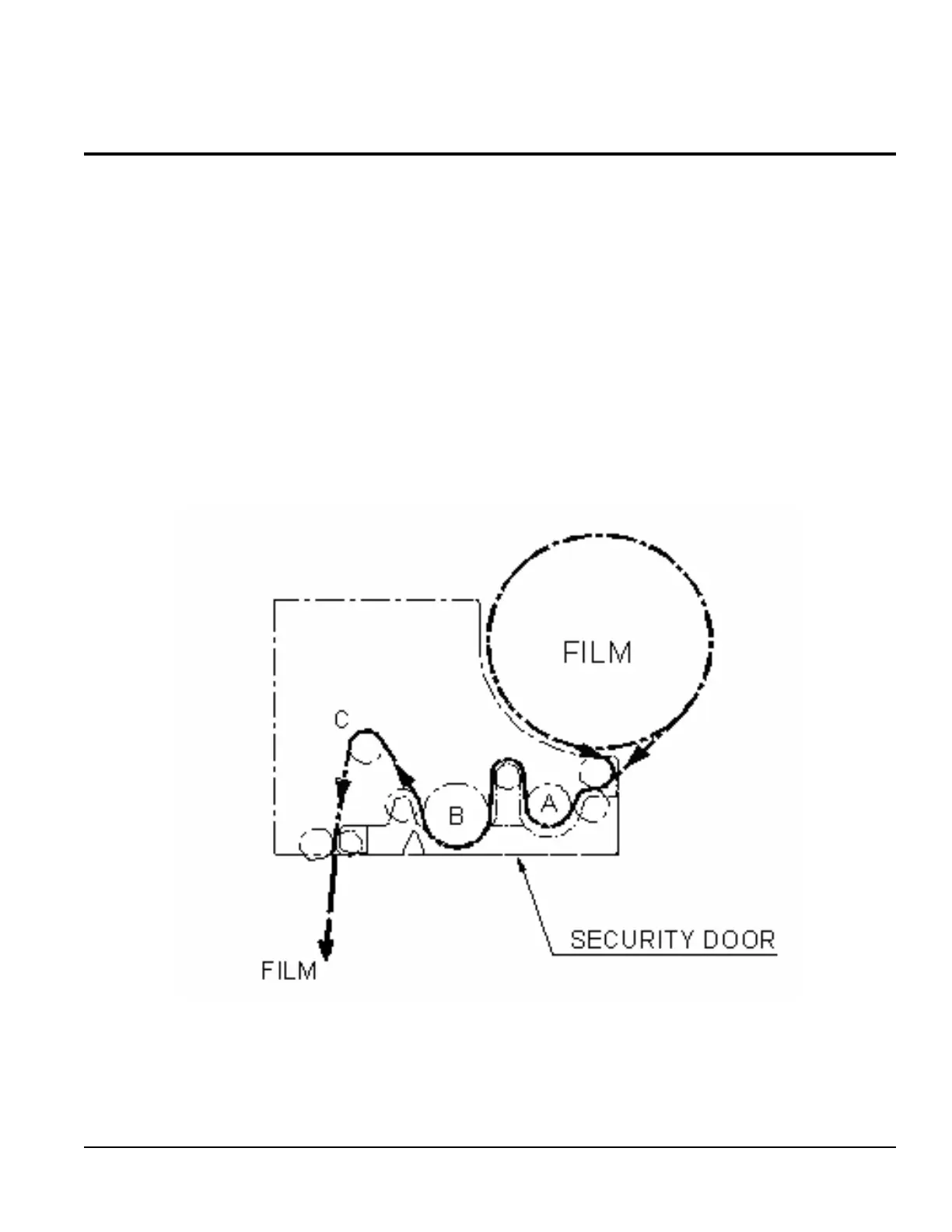

Exhibit 3-1: Film Threading Diagram
