Turntable Belt Adjustment
Refer to figure below to adjust the turntable belt. First, loosen the four motor flange (M10) screws.
Turn the (M10) bolt on the adjuster tab until the belt is tensioned. Retighten the four motor flange
screws.

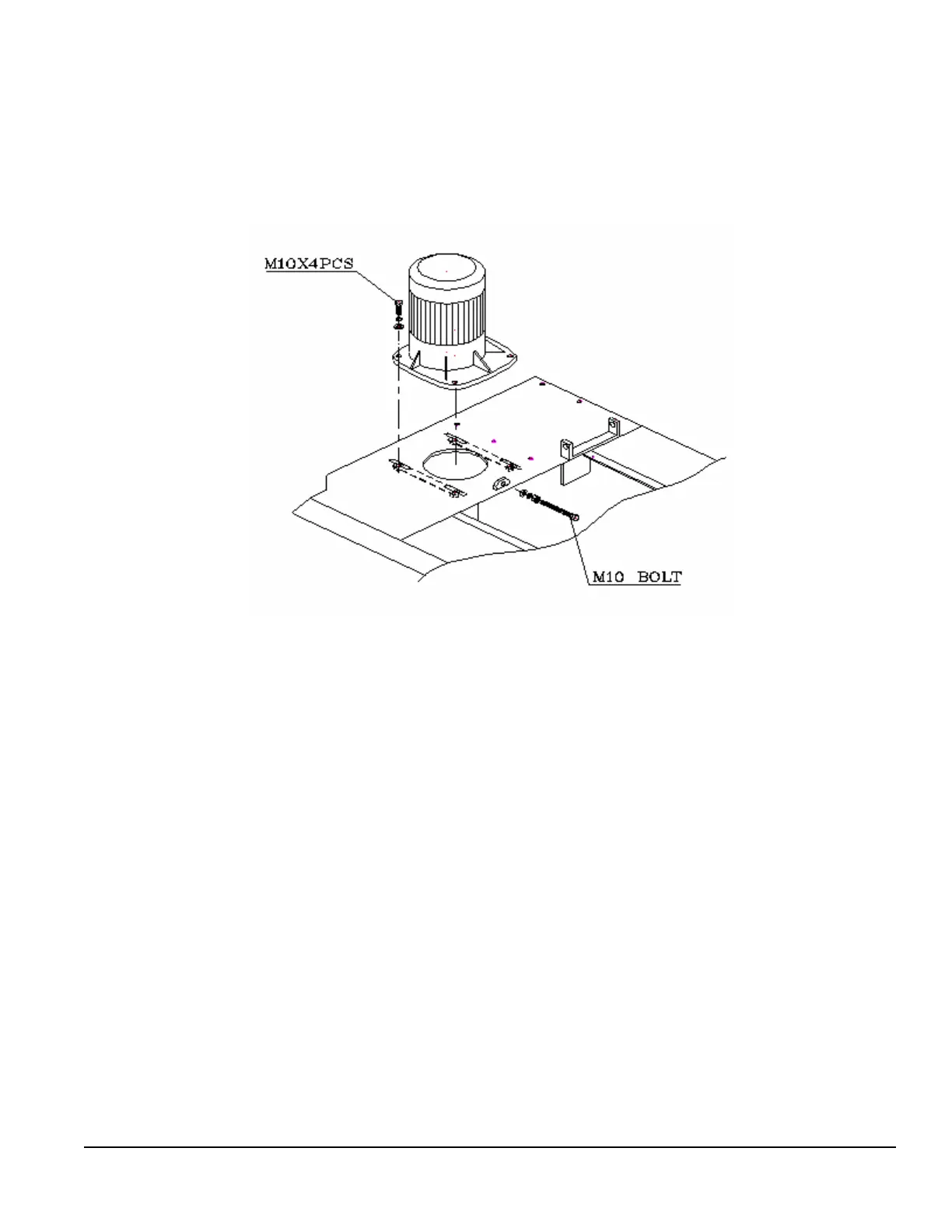

Exhibit 4-1: Turntable Belt Adjustment
Film Carriage Lift Chain Adjustment
Refer to figure below to adjust the film carriage lift chain. First, loosen nut (M12) on the adjustment
bracket. Turn the bottom bolt until desired tension is achieved. Retighten nut (M12). Note that the
driving chain and adjustment bracket should be parallel with the moveable pulley base.
