HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
118

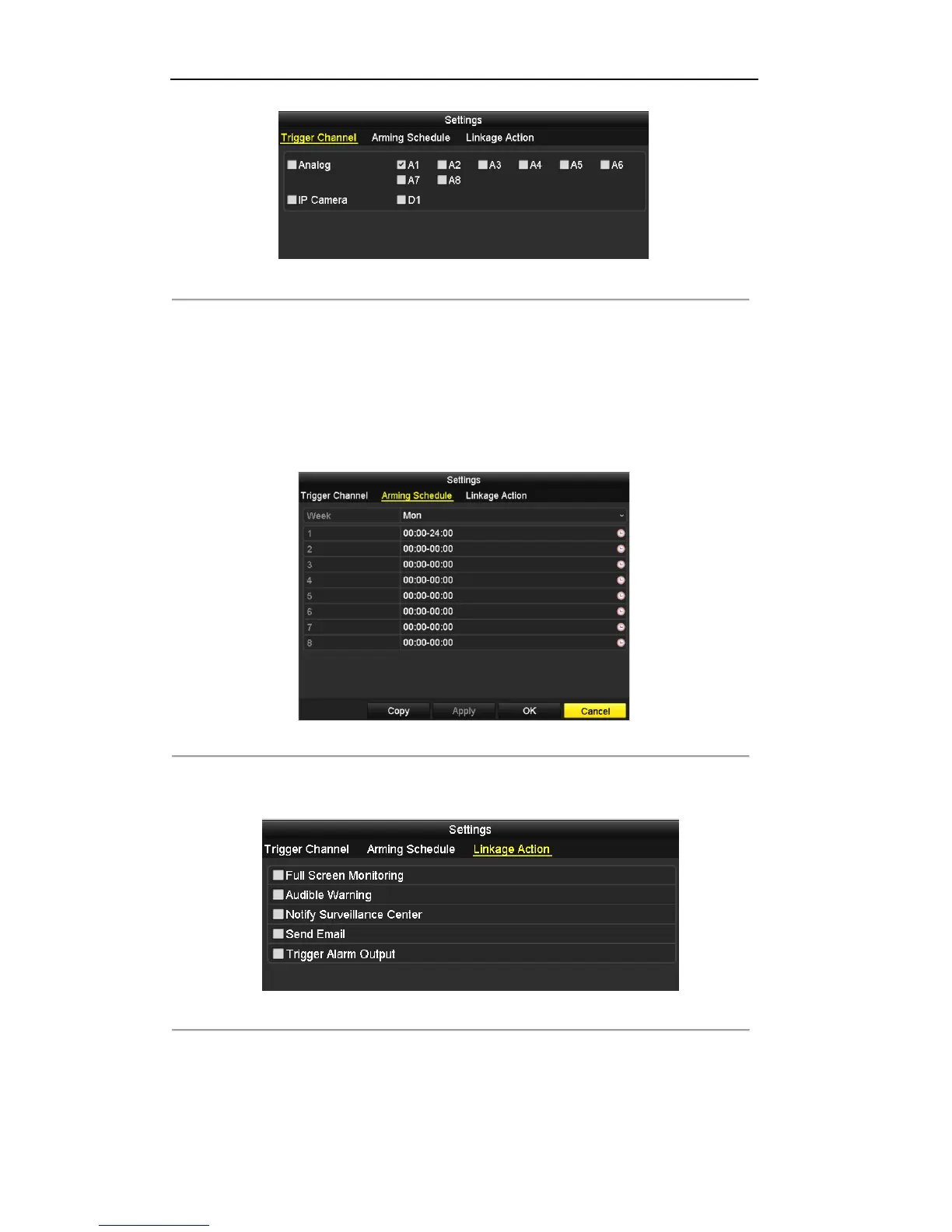

Figure 8.3 Set Trigger Camera of Motion Detection
4. Set up arming schedule of the channel.
1) Select Arming Schedule tab to set the channel’s arming schedule.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply to save the arming settings of the selected day.
4) Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy
button to copy an arming schedule to other days.
Note: Time periods shall not be repeated or overlapped.
Figure 8.4 Set Arming Schedule of Motion Detection
5. Click the Linkage Action tab to set up alarm response actions of motion alarm (please refer to Chapter
8.6).
Figure 8.5 Set Alarm Response Actions of Motion Detection
Note: The Trigger Alarm Output option is available for DS-7224/7232-SH, DS-7300-SH, DS-8100-SH
and HDVR models only.
6. Click OK to complete the motion detection settings of the channel.

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
