HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
117
8.1 Setting Motion Detection
Steps:
1. Enter Motion Detection interface and choose a camera you want to set motion detection.
Menu> Camera> Motion

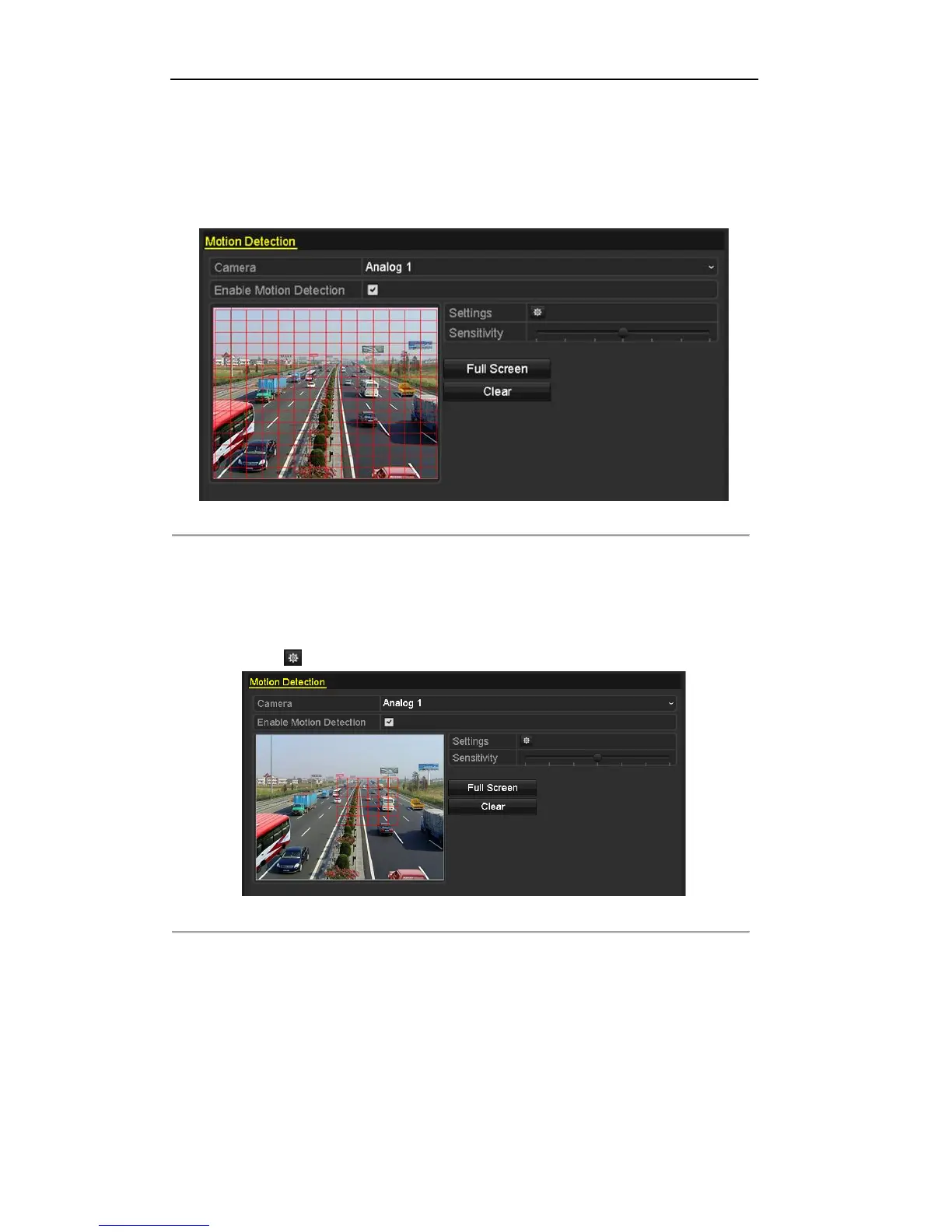

Figure 8.1 Motion Detection Setup Interface
2. Set motion detection area and sensitivity.
1) Check the checkbox of Enable Motion Detection to enable motion detection, use the mouse to
draw detection area(s) and drag the sensitivity bar to set sensitivity. Please refer to Chapter 5.3
Configuring Motion Detection Record.
Note: By default, the motion detection is enabled and configured in full screen.
2) Click the icon of Settings to set alarm response actions.
Figure 8.2 Set Detection Area and Sensitivity
3. Click Trigger Channel tab and select one or more channels which will start to record or become
full-screen monitoring when motion alarm is triggered.

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
