8.2 Setting Sensor Alarms
Note: This section is available for DS-7224/7232-SH, DS-7300-SH, DS-8100-SH and HDVR models only.
Purpose:
You can set handling method of an external sensor alarm.
Steps:
1. Enter Alarm Settings interface and select an alarm input.
Menu> Configuration> Alarm

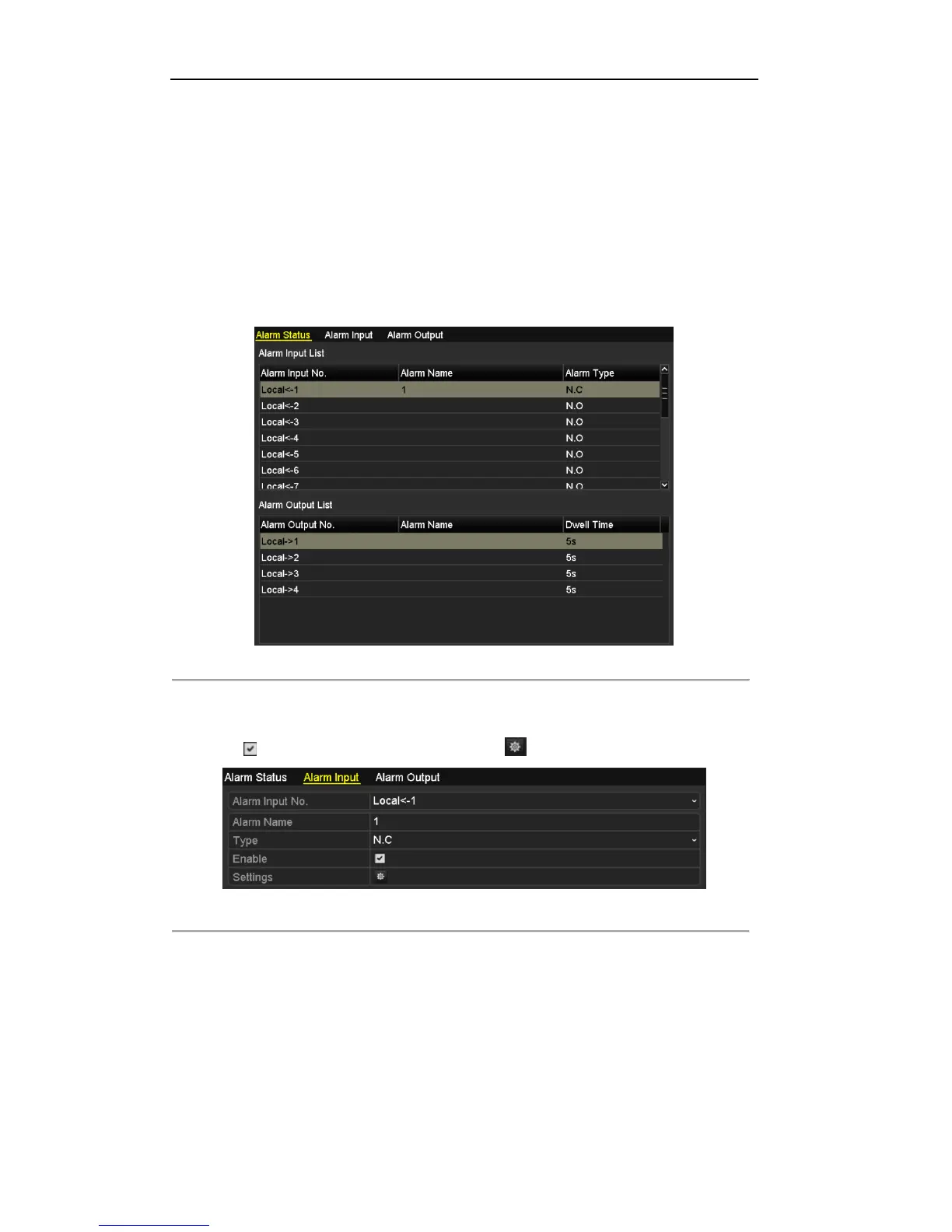

Figure 8.7 Alarm Status Interface
2. Select Alarm Input tab to enter Alarm Input Settings interface and set the handling method of the
selected alarm input.
Check checkbox to enable the alarm input and click to set up its alarm response actions.
Figure 8.8 Alarm Input Settings Interface
3. Select Trigger Channel tab and select one or more channels which will start to record or become
full-screen monitoring when an external alarm is input. Click Apply to save the settings.
4. Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and up to eight time periods can be set within each day. Set up arming
schedule of other days of a week. You can also use Copy to copy an arming schedule to other days.
Click Apply to save the settings.
Note: Time periods shall not be repeated or overlapped.
5. Select the Linkage Action tab to set alarm response actions of the alarm input (please refer to Chapter
