User Manual of DS-7200/7300/8100-SH Series DVR
71
5.4 Configuring Alarm Triggered Record
Note: This section is available for DS-7224/7332-SH, DS-7300-SH, DS-8100-SH and HDVR models only.
Purpose:
Follow the procedure to configure alarm triggered recording.
Steps:
1. Enter the Alarm setting interface.
Menu> Configuration> Alarm

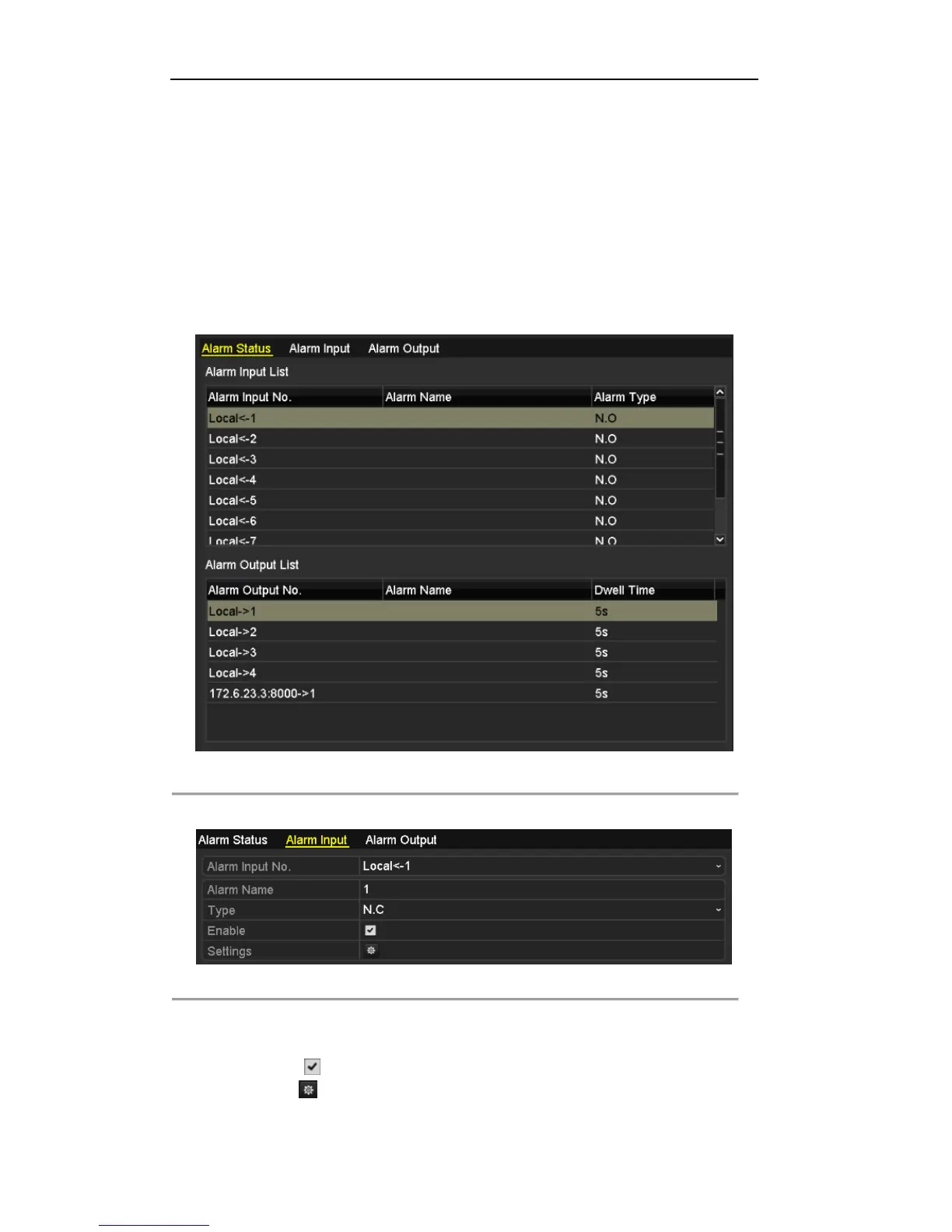

Figure 5.20 Alarm Settings
2. Click Alarm Input tab.
Figure 5.21 Alarm Settings- Alarm Input
1) Select Alarm Input No. and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check checkbox to enable the alarm input.
4) Click to set the handling method.
