HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
21
1.5 Rear Panel
DS-7204HVI/HFI/HWI-SH, DS-7204HVI-SV and DS-7204HWI-SV:

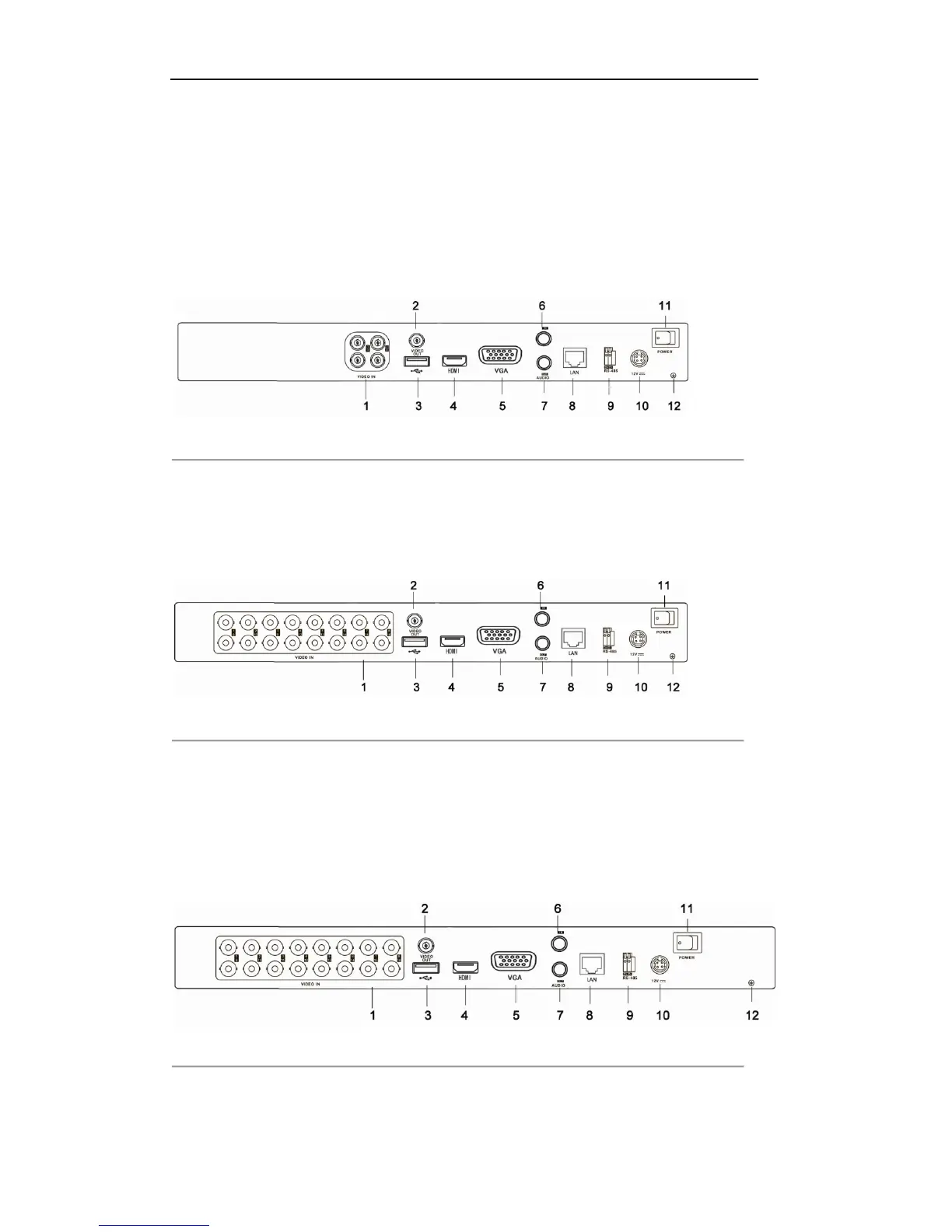

The rear panel of 7204HVI/HFI/HWI-SH, DS-7204HVI-SV and DS-7204HWI-SV DVR is shown in Figure
1.6.
Figure 1.6 Rear Panel of DS-7204HVI/HFI/HWI-SH, DS-7204HVI-SV and DS-7204HWI-SV
DS-7216HVI-SH, DS-7216HVI-SV and DS-7216HWI-SL:
The rear panel of DS-7216HVI-SH, DS-7216HVI-SV and DS-7216WI-SL DVR is shown in Figure 1.7.
Figure 1.7 Rear Panel of DS-7216HVI-SH and DS-7216HVI-SV
Note: The rear panel of DS-7208HVI-SH/DS-7208HVI-SV/DS-7208HWI-SL provides 8 video input
interfaces.
DS-7216HFI-SH and DS-7216HWI-SH:
The rear panel of DS-7216HFI-SH and DS-7216HWI-SH is shown in Figure 1.8.
Figure 1.8 Rear Panel of DS-7216HFI-SH and DS-7216HWI-SH
Note: The rear panel of DS-7208HFI-SH/DS-7208HWI-SH provides 8 video input interfaces.

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
