HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
111

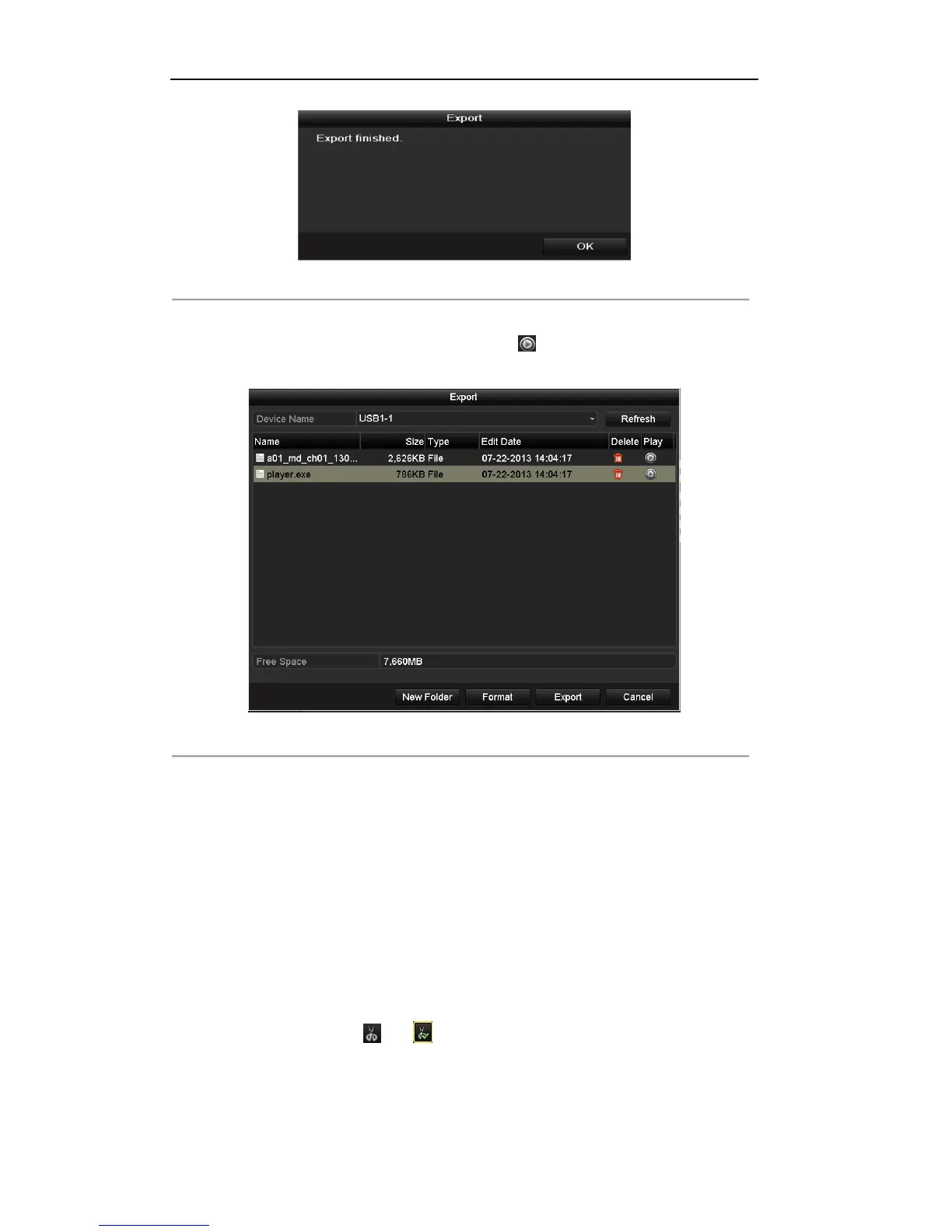

Figure 7.13 Export Finished
8. Check backup result.
Choose the record file in Export interface and click button to check it.
Note: The Player player.exe will be exported automatically during record file export.
Figure 7.14 Checkup of Event Export Result Using USB Flash Drive
7.1.4 Backing up Video Clips
Purpose:
You may also select video clips to export directly during Playback, using USB devices (USB flash drives,
USB HDDs, USB writer), SATA writer or eSATA HDD.
Note: The eSATA writer is supported by DS-7300-SH and DS-8100-SH models only.
Steps:
1. Enter Playback interface.
Please refer to Chapter 6.
2. During playback, use buttons and in the playback toolbar to start or stop clipping record
file(s).

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
