HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
110
shown in Figure 7.14.

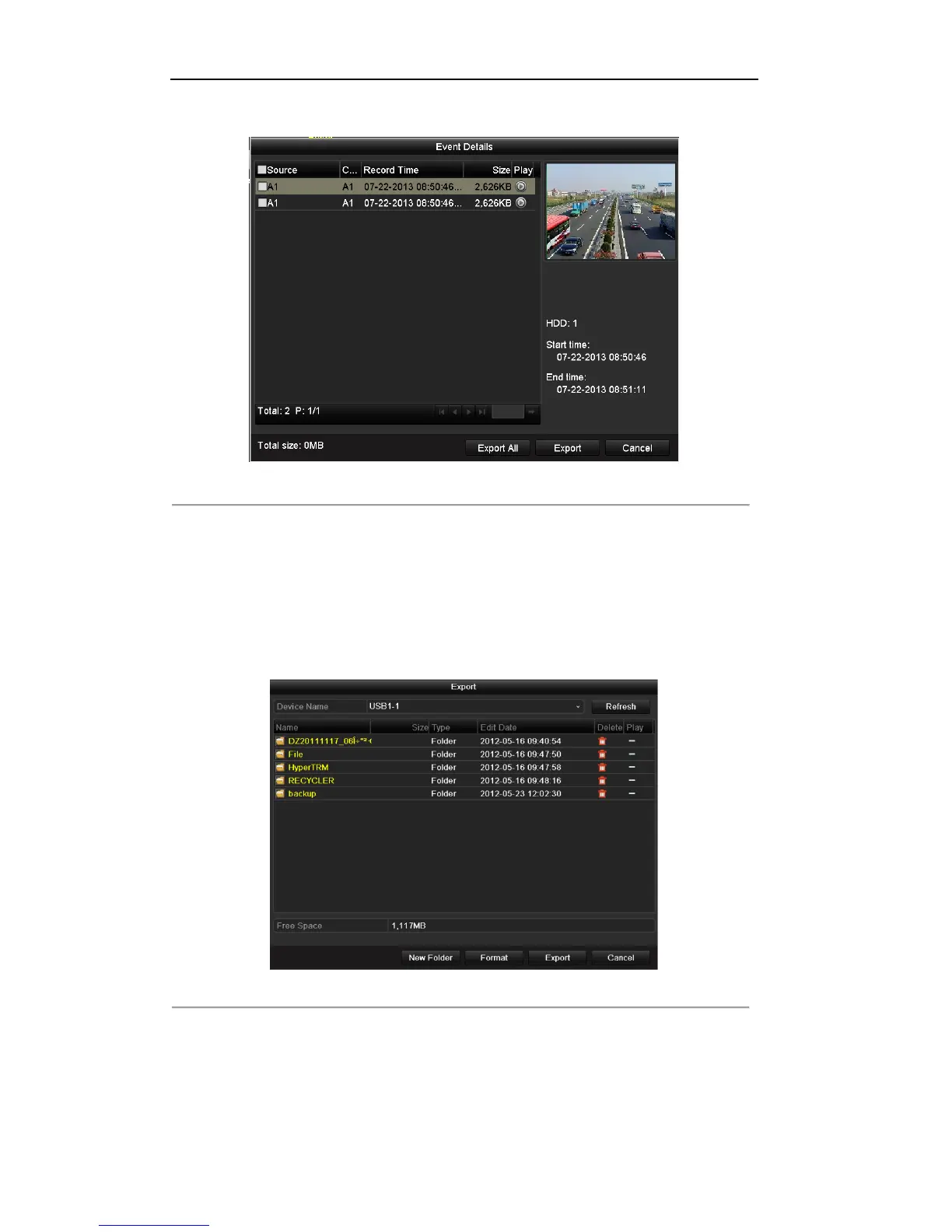

Figure 7.11 Event Details Interface
7. Export the selected record files.
Click the Export button and start backing up.
Note: If the inserted USB device is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format USB flash drive or USB HDDs via the device.
Figure 7.12 Export by Event Using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”.

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
