HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
109

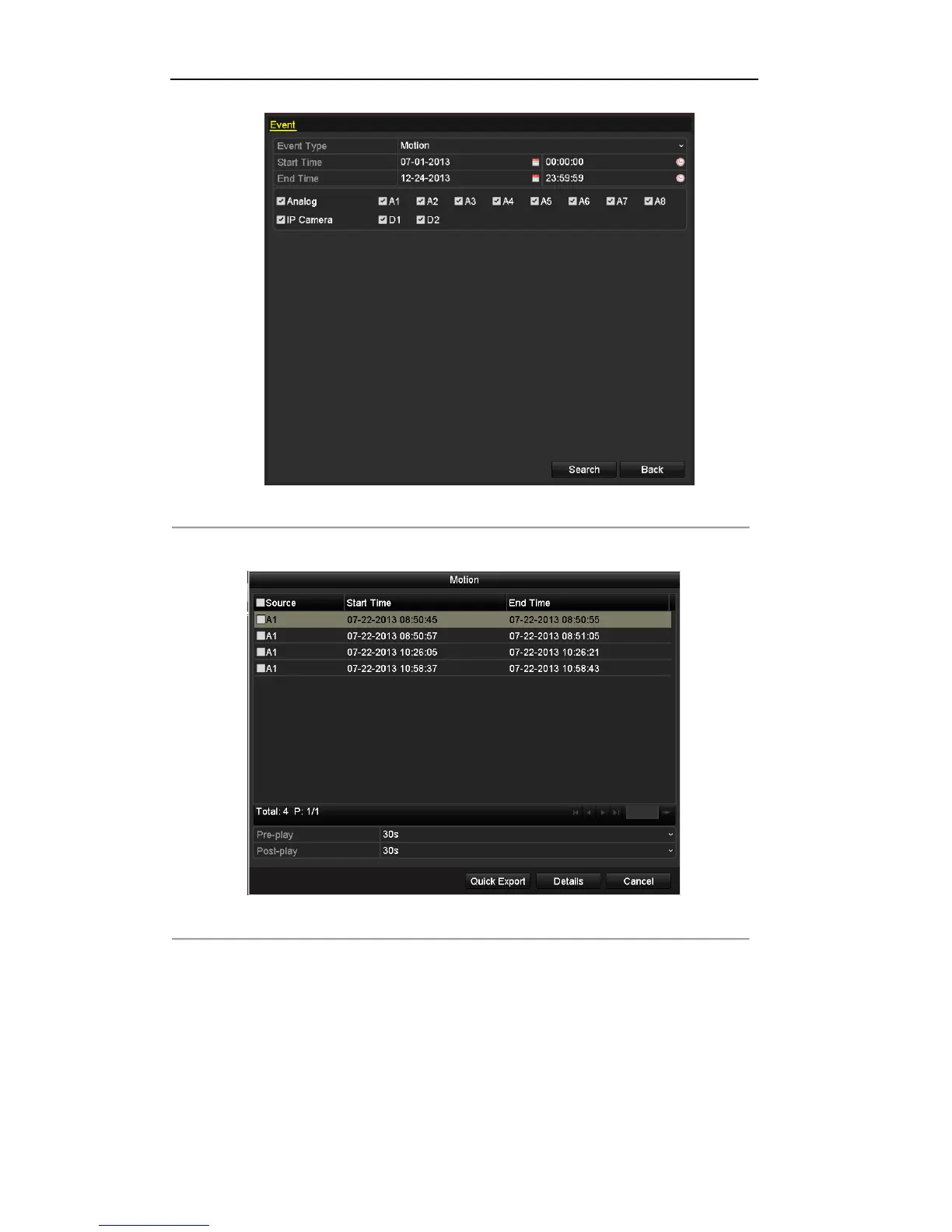

Figure 7.9 Event Search for Backup
5. Click Search button to enter the Search Result interface.
Figure 7.10 Result of Event Search
6. Select record files to export. You can use the following two ways to enter the Export interface.
 Select motion detection event (s) from the list and click Quick Export button to enter the Export
interface, as shown in Figure 7.14.
 (1) Click the Details button to enter the interface with detailed information of the record file, e.g.,
start time, end time, file size, etc.
Note: The size of the currently selected files is displayed in the lower-left corner of the window.
(2) Select record file (s) from the list and click Export button to enter the Export interface, as

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
