User Manual of DS-7200/7300/8100-SH Series DVR
143

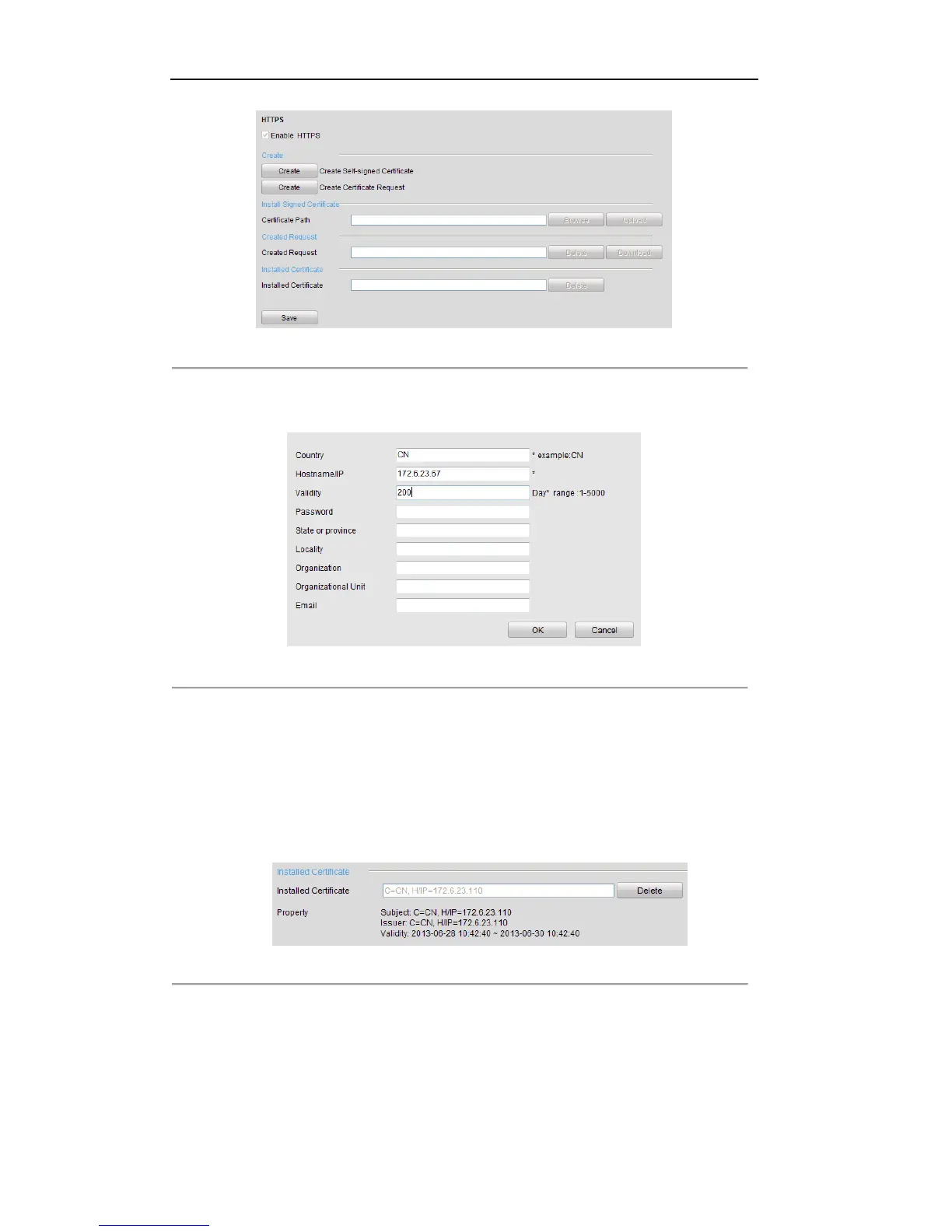

Figure 9.31 HTTPS Settings
OPTION 1: Create the self-signed certificate
1) Click the Create button and a dialog box pops up as follows:
Figure 9.32 Create Self-signed Certificate
2) Enter the country, host name/IP, validity and other information.
3) Click OK to save the settings.
OPTION 2: Create the authorized certificate
1) Click the Create button to create the certificate request.
2) Download the certificate request and submit it to the trusted certificate authority for signature.
3) After receiving the signed valid certificate, import the certificate to the device.
3. The certificate information will be displayed after you successfully created and installed the certificate.
Figure 9.33 Installed Certificate Property
4. Check the checkbox to enable the HTTPS function.
Note: The HTTPS Port should be set to the range of 1-65535.

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
