HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
30

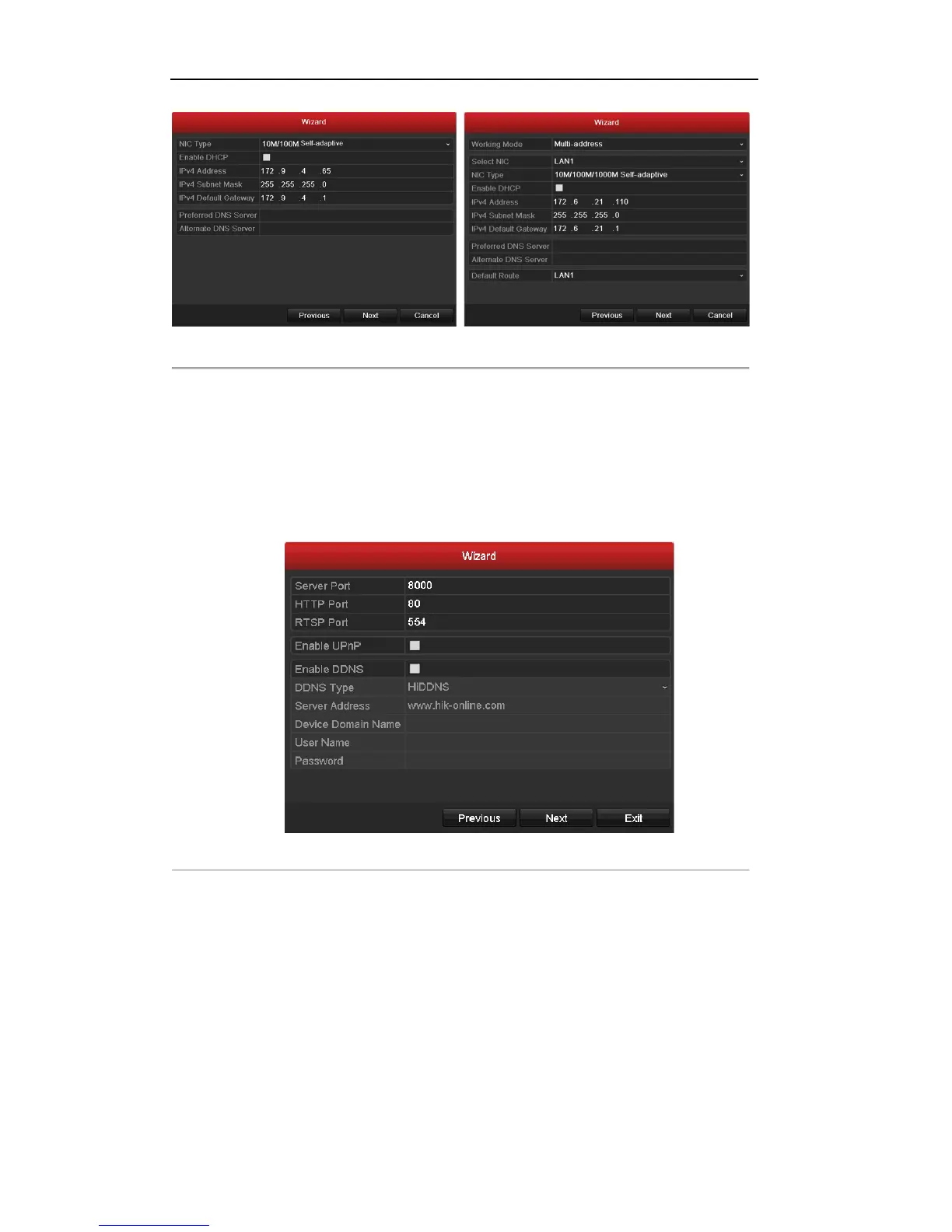

Figure 2.5 Network Configuration
Note: The DS-7204/7208/7216-SH/SV/SL models provide one 10M/100Mbps self-adaptive network
interface, the DS-7224/7232-SH and DS-7300-SH models provide one 10M/100M/1000Mbps
self-adaptive network interface, and the DS-8100-SH models provide two10M/100M/1000Mbps
self-adaptive network interfaces.
6. Click Next button to enter the advanced network settings window.
7. Configure the advanced network parameters, including the server port, HTTP port, RTSP port, UPnP
and DDNS settings.
Figure 2.6 Advanced Network Configuration
8. Click Next button to enter the HDD Management window, shown in Figure 2.7.
To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD.

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
