HIKVISION DS-7200 Series User Manual

User Manual of DS-7200/7300/8100 Series DVR
35

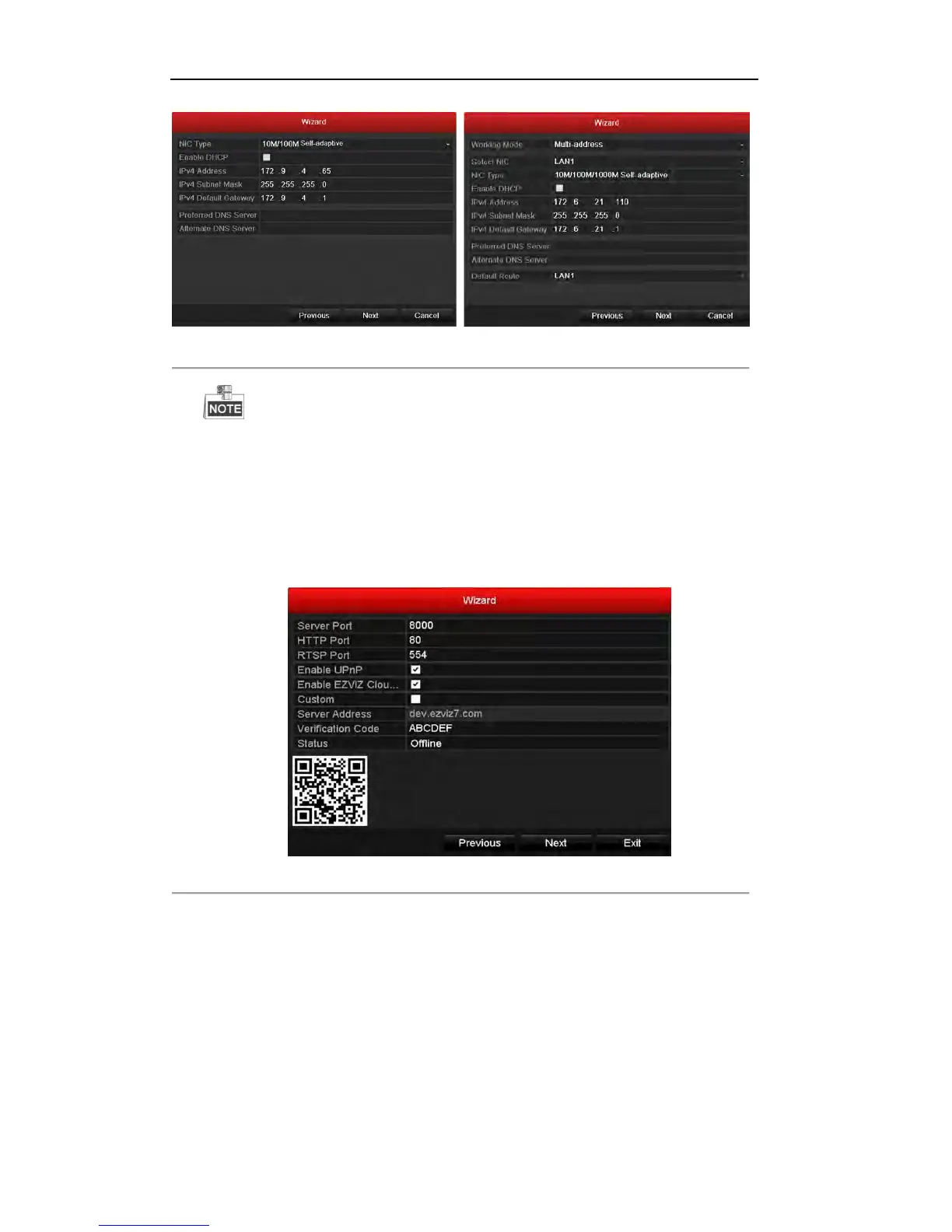

Figure 2. 7 Network Configuration
The DS-7204/7208/7216 models provide one 10M/100Mbps self-adaptive network interface, the
DS-7224/7232, DS-7300 and DS-8104/8108 models provide one 10M/100M/1000Mbps self-adaptive
network interface, and the DS-8116/8124/8132 models provide two10M/100M/1000Mbps self-adaptive
network interfaces.
4. Click Next button to enter the advanced network settings window.
5. Configure the advanced network parameters, including the server port, HTTP port, RTSP port, UPnP,
and EZVIZ Cloud P2P settings.
Figure 2. 8 Advanced Network Configuration
6. Click Next button to enter the HDD Management window.
To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD.

HIKVISION DS-7200 Series Specifications

General

Brand	HIKVISION
Model	DS-7200 Series
Category	DVR
Language	English
