HIKVISION DS-7216HGHI-K1 User Manual

Network Video Recorder User Manual
25
No.
Name
Function Description
Stops/starts auto switch in Auto-switch mode.
5
POWER
Power on/off switch.
6
JOG SHUTTLE Control
Moves the active selection up and down in a menu.
Cycles through different channels in live view mode.
Jumps 30s forward/backward in video files in the
playback mode.
Controls the movement of the PTZ camera in PTZ
control mode.
Moves the active selection up and down in a menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
8
IR Receiver
Receiver for IR remote control.
DS-8100HQHI/HUHI/HTHI-K8, DS-
9000HUHI/HTHI-K8 and iDS-9016HUHI-K8/16S

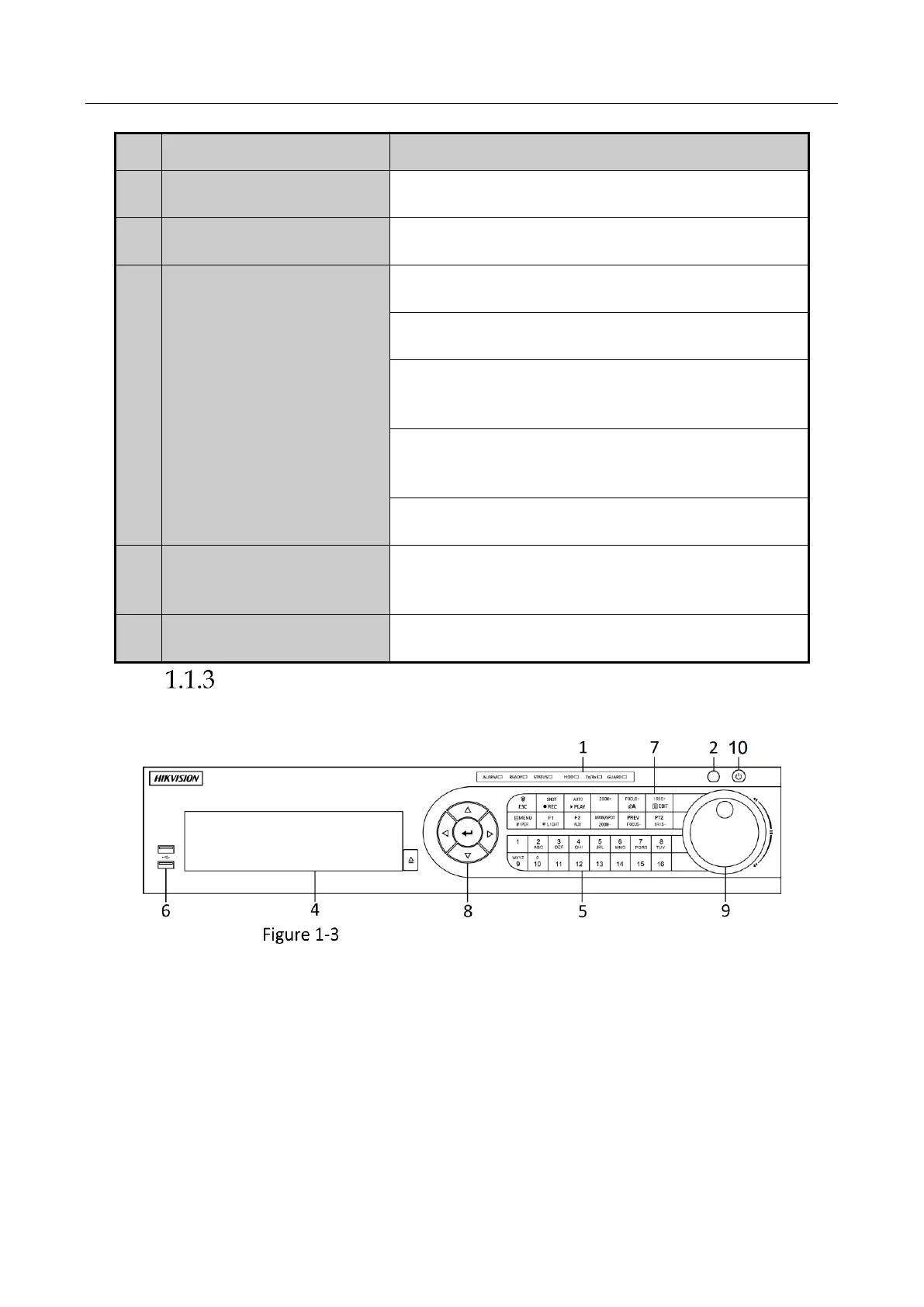

Front Panel of DS-8100HQHI/HUHI/HTHI-K8

HIKVISION DS-7216HGHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265 Pro+, H.265+
Analog signal format system	NTSC, PAL
DC voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	10000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1100 g
