HIKVISION DS-7216HGHI-K1 User Manual

Network Video Recorder User Manual
52

Connect at least 4 dots to draw the pattern.

Each dot can be connected for once only.
Draw the same pattern again to confirm it. When the two patterns match, the pattern
is configured successfully.
Login to the Device
Log in via Unlock Pattern

Only the admin user has the permission to unlock the device.

Please configure the pattern first before unlocking. Please refer to 2.2 Activate the Device.
Right click the mouse on the screen and select the menu to enter the interface.

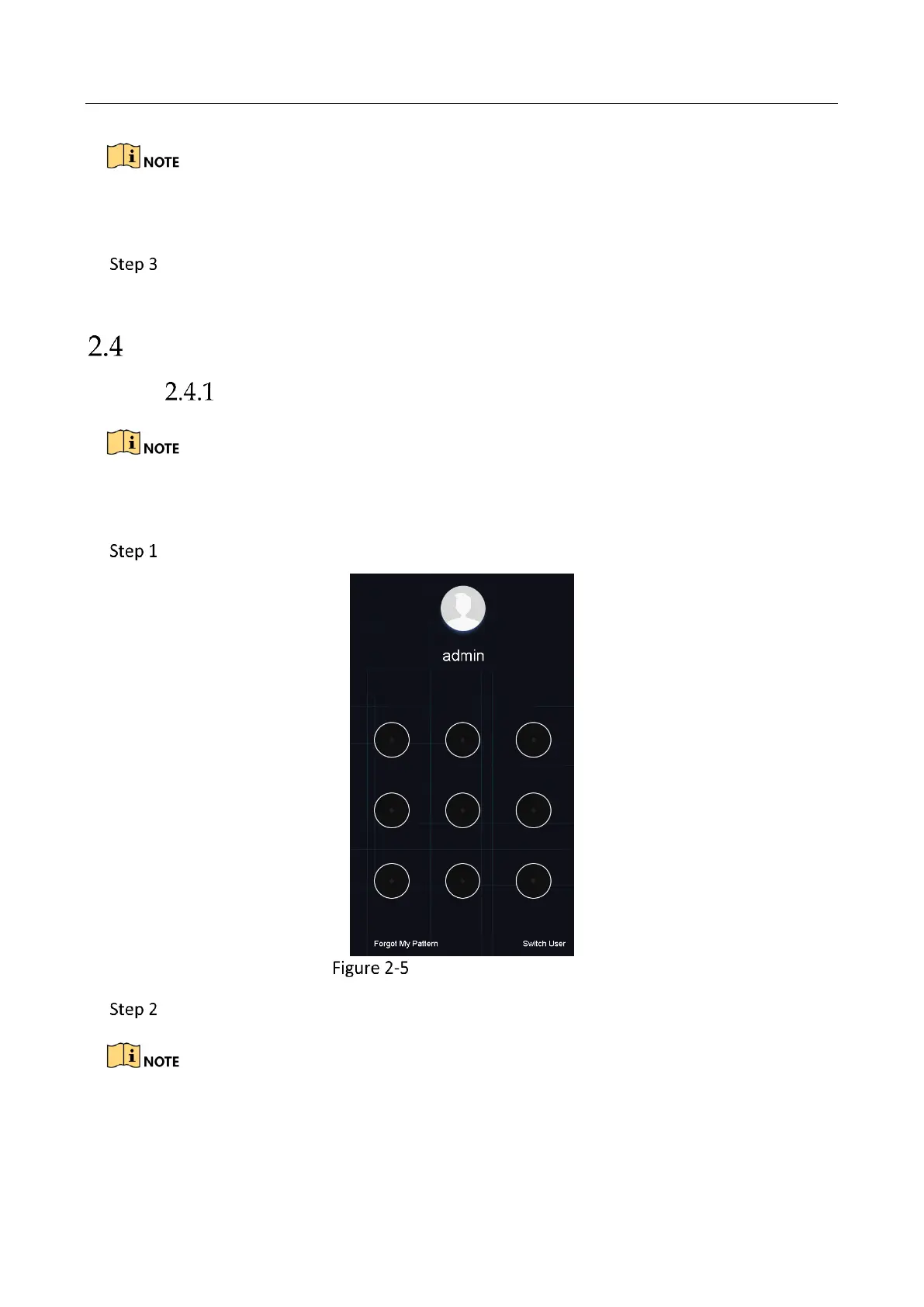

Draw the Unlock Pattern
Draw the pre-defined pattern to unlock to enter the menu operation.

HIKVISION DS-7216HGHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265 Pro+, H.265+
Analog signal format system	NTSC, PAL
DC voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	10000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1100 g
