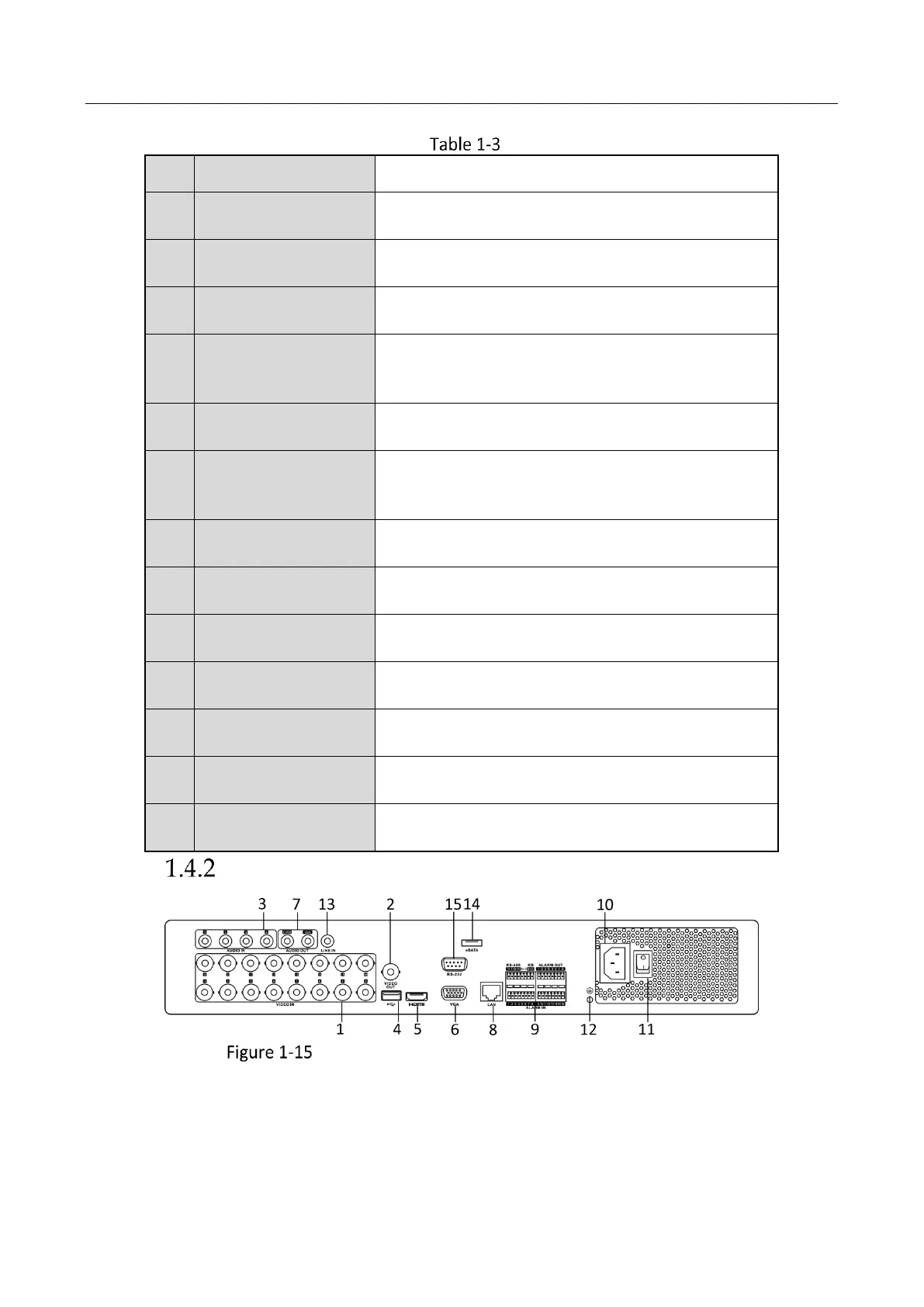

Network Video Recorder User Manual
38
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector.
4
VGA
DB15 connector for VGA output. Display local video
output and menu.
5
HDMI
HDMI video output connector.
6
USB Interface
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network
8
RS-485 Interface
Connector for RS-485 devices.
9
Power Supply
48 VDC or 12 VDC.
10
Power Switch
Switch for turning on/off the device.
11
GND
Ground
12
VIDEO OUT
BNC connector for video output.
13
Alarm In/Out
Connector for alarm input and output.
DS-7300HQHI-K
Rear Panel of DS-7300HQHI-K (with 16 Video Inputs)
