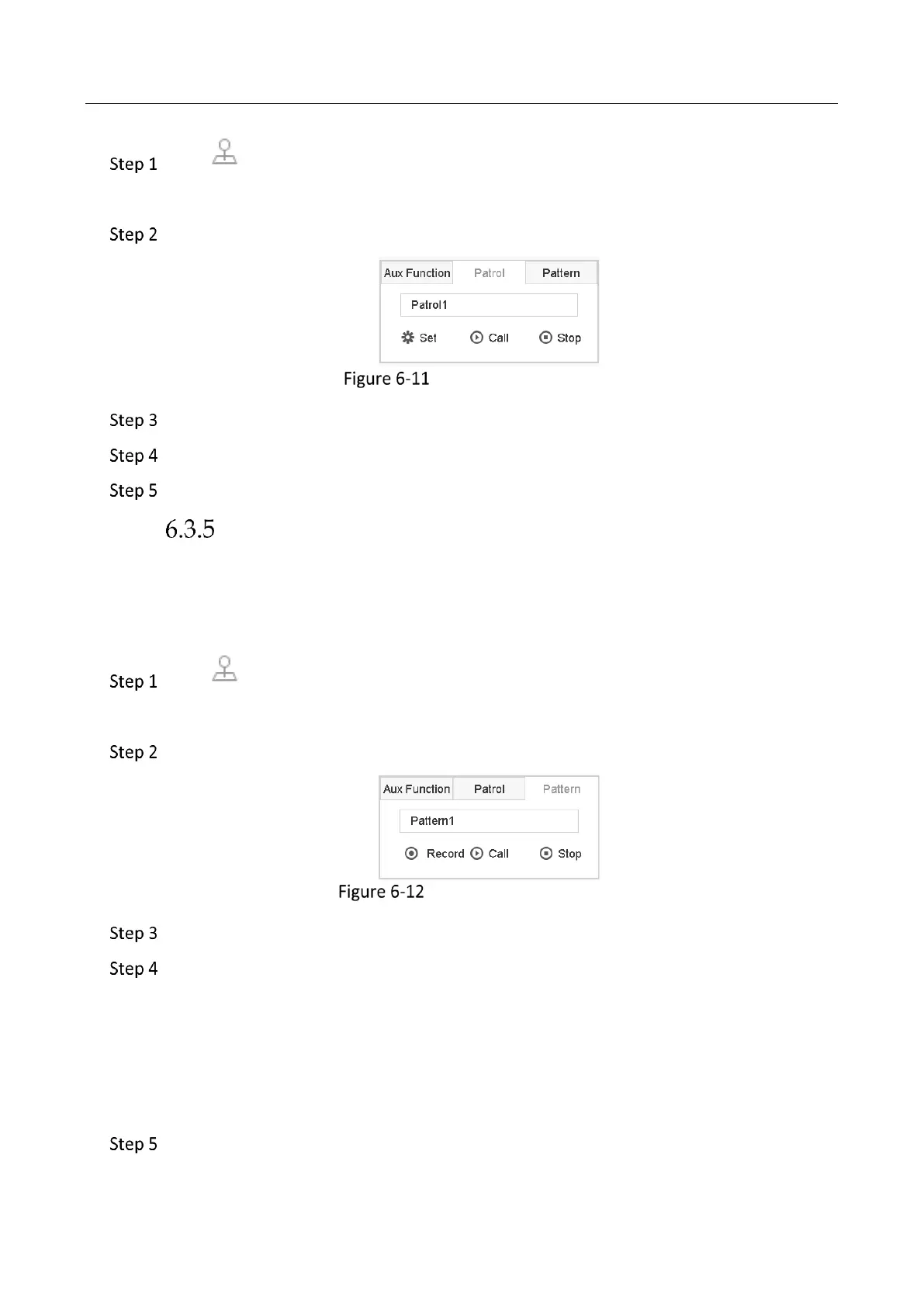

Click on the quick settings toolbar in the live view interface..
The PTZ control panel displays on the right of the interface.
Click Patrol on the PTZ control panel.
Patrol Configuration
Select a patrol in the text field.
Click Call to call it.
(Optional) Click Stop to stop calling it.
Set a Pattern
Purpose:
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the
PTZ movement according to the predefined path.
Click on the quick settings toolbar in the live view interface..
The PTZ control panel displays on the right of the interface.
Click Pattern to configure pattern.
Pattern Configuration
Select the pattern No. in the text field.
Set the pattern.
1) Click Record to start recording.
2) Click corresponding buttons on the control panel to move the PTZ camera.
3) Click Stop to stop recording.
The movement of the PTZ is recorded as the pattern.
Repeat steps 3-4 to set more patterns.

HIKVISION DS-7216HGHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265 Pro+, H.265+
Analog signal format system	NTSC, PAL
DC voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	10000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1100 g
