HIKVISION DS-7216HGHI-K1 User Manual

Network Video Recorder User Manual
40
No.
Item
Description
15
RS-232 Interface
Connector for RS-232 devices.
DS-7300HUHI/HTHI-K4, iDS-7316HUHI-K4/16S and
DS-9000HUHI-K8

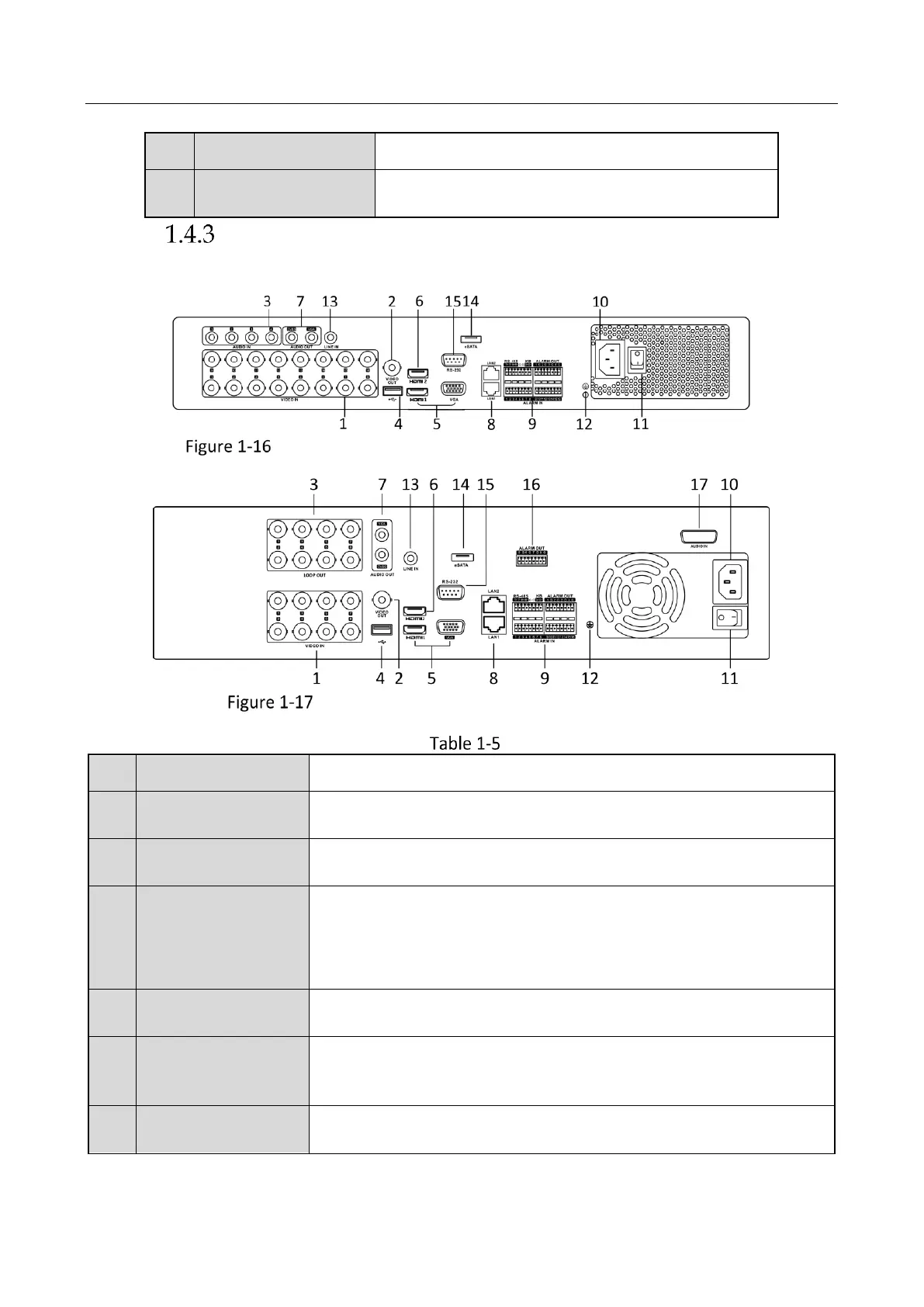

Rear Panel of DS-7300HUHI/HTHI-K4 and iDS-7316HUHI-K4/16S
Rear Panel of DS-9000HUHI-K8 (with 8 Video Inputs)
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
VIDEO OUT
BNC connector for video output.
3
AUDIO IN/
LOOP OUT (for DS-
9000HUHI-K8)
RCA connector
4
USB Port
Universal Serial Bus (USB) port for additional devices.
5
HDMI1/VGA
Simultaneous HDMI1/VGA output. Display local video output and
menu.
6
HDMI2
HDMI2 video output connector.

HIKVISION DS-7216HGHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265 Pro+, H.265+
Analog signal format system	NTSC, PAL
DC voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	10000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1100 g
