HIKVISION DS-7216HGHI-K1 User Manual

Network Video Recorder User Manual
43
1
2 34
5
6
7
8
9
10
11
12
13
14
15
16

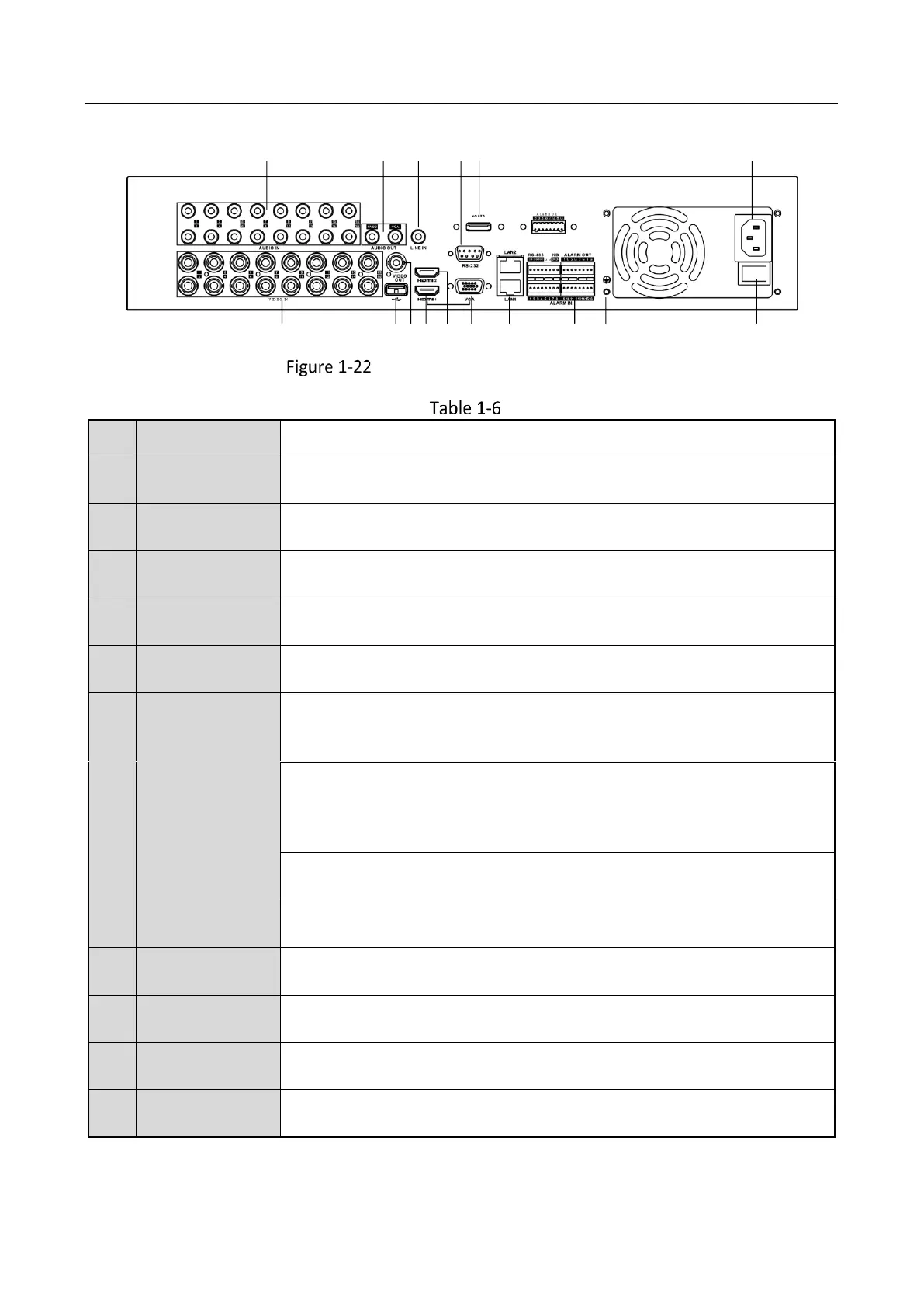

Rear Panel of iDS-9016HUHI-K8/16S
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
AUDIO IN
RCA connector.
3
LINE IN
BNC connector for audio input.
4
AUDIO OUT
RCA connector.
5
VIDEO OUT
BNC connector for video output.
6
RS-485 and
Alarm Interface
Connector for RS-485 devices. T+ and T- pins connect to R+ and R- pins
of PTZ receiver respectively.
D+, D- pin connects to Ta, Tb pin of controller. For cascading devices, the
first DVR’s D+, D- pin should be connected with the D+, D- pin of the
next DVR.
Connector for alarm input.
Connector for alarm output.
7
RS-232 Interface
Connector for RS-232 devices.
8
VGA Interface
VGA video output connector. Display local video output and menu.
9
eSATA
Connects external SATA HDD, CD/DVD-RW.
10
HDMI1 Interface
HDMI1 video output connector. Display local video output and menu.

HIKVISION DS-7216HGHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265 Pro+, H.265+
Analog signal format system	NTSC, PAL
DC voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	10000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1100 g
