HIKVISION DS-7216HGHI-K1 User Manual

Network Video Recorder User Manual
82
Call a Pattern
Purpose:
Follow the procedure to move the PTZ camera according to the predefined patterns.
Click on the quick settings toolbar in the live view interface.
The PTZ control panel displays on the right of the interface.
Click Pattern to configure pattern.

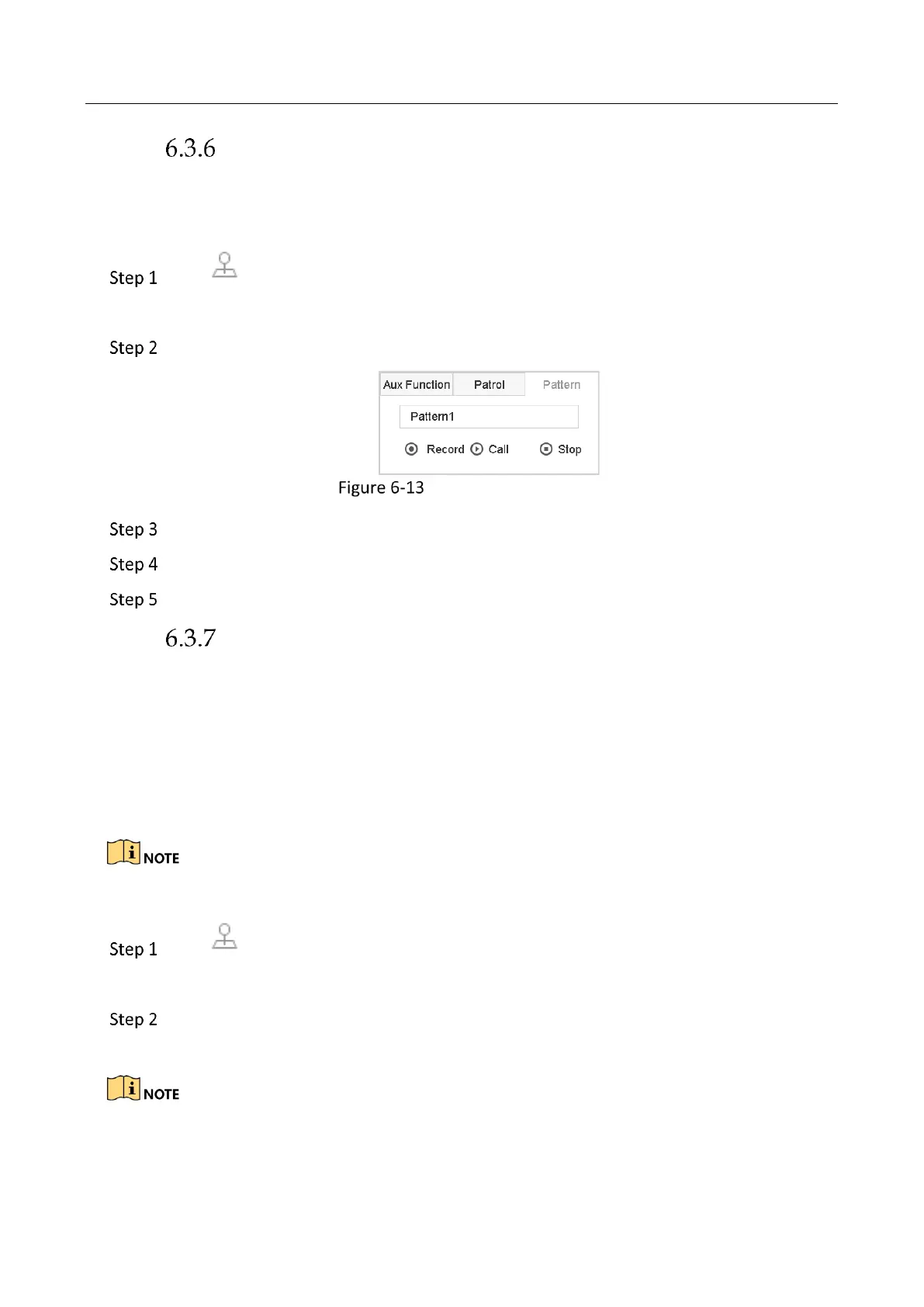

Pattern Configuration
Select a pattern in the text field.
Click Call to call it.
(Optional) Click Stop to stop calling it.
Set Linear Scan Limits
Before you start:
Please make sure the connected IP camera supports the PTZ function, and is properly connected.
Purpose:
The linear scan can be enabled to trigger the scan in the horizontal direction in the predefined
range.
This function is supported by some certain models.
Click on the quick settings toolbar in the live view interface..
The PTZ control panel displays on the right of the interface.
Click the directional buttons to wheel the camera to the location where you want to
set the limit, and click Left Limit or Right Limit to link the location to the corresponding limit.

HIKVISION DS-7216HGHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265 Pro+, H.265+
Analog signal format system	NTSC, PAL
DC voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	10000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1100 g
