HIKVISION DS-7216HGHI-K1 User Manual

Network Video Recorder User Manual
46
No.
Item
Description
10
Power Supply
12 VDC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GND
Ground
DS-8100HTHI-K8

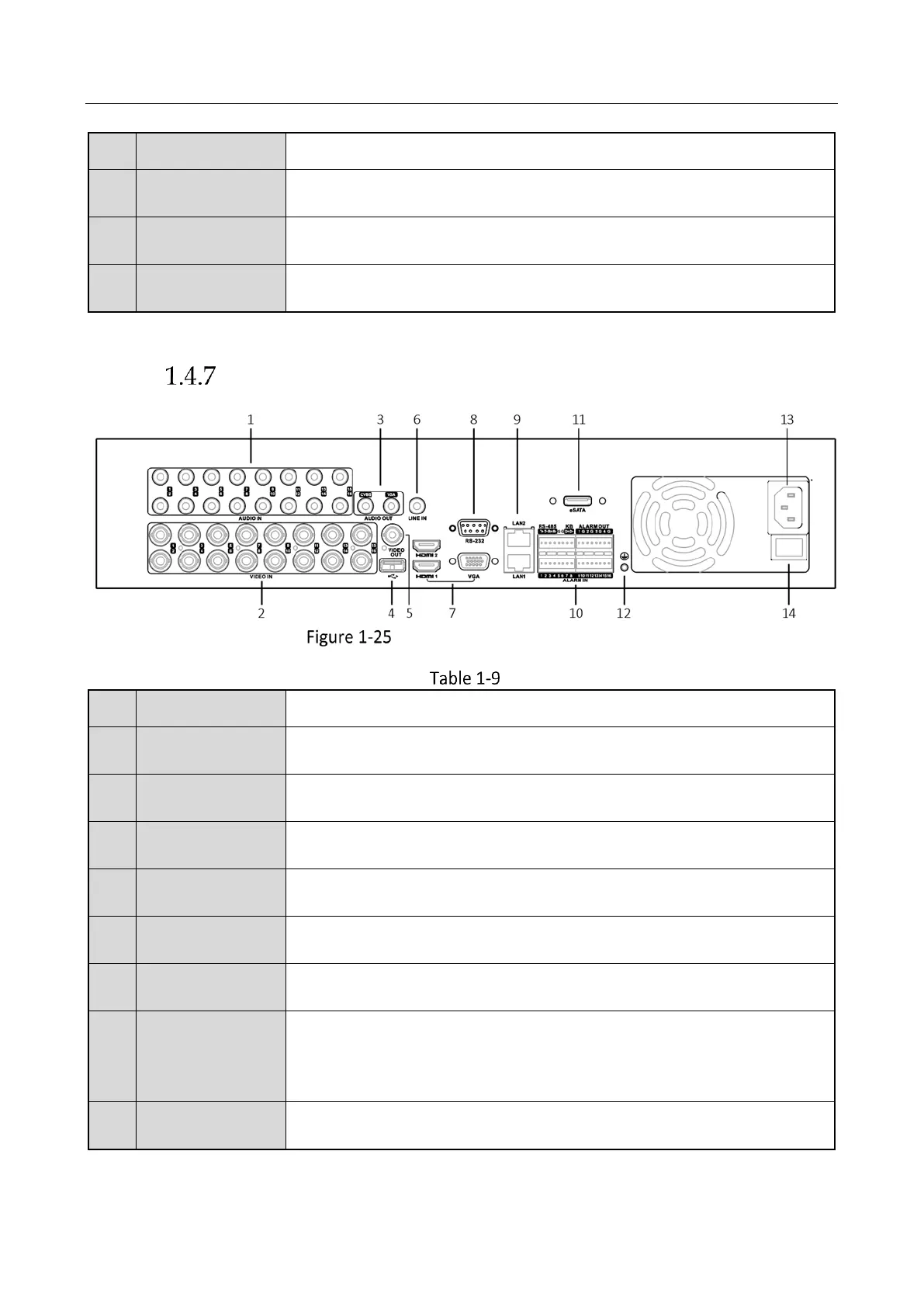

Rear Panel of DS-8100HTHI-K8
Rear Panel Description
No.
Item
Description
1
AUDIO IN
RCA connector.
2
VIDEO IN
BNC interface for Turbo HD and analog video input.
3
AUDIO OUT
RCA connector.
4
USB Interface
Universal Serial Bus (USB) port for additional devices.
5
VIDEO OUT
BNC connector for video output.
6
LINE IN
BNC connector for audio input.
7
HDMI1, HDMI2
and VGA
Interface
HDMI1, HDMI2 and VGA video output connector.
8
RS-232 Interface
Connector for RS-232 devices.

HIKVISION DS-7216HGHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265 Pro+, H.265+
Analog signal format system	NTSC, PAL
DC voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	10000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1100 g
