HIKVISION DS-7216HGHI-K1 User Manual

Network Video Recorder User Manual
72
Configure Live View Settings
Purpose:
Live View settings can be customized according to different needs. You can configure the output
interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for
each channel, etc.
Go to System > Live View > General.

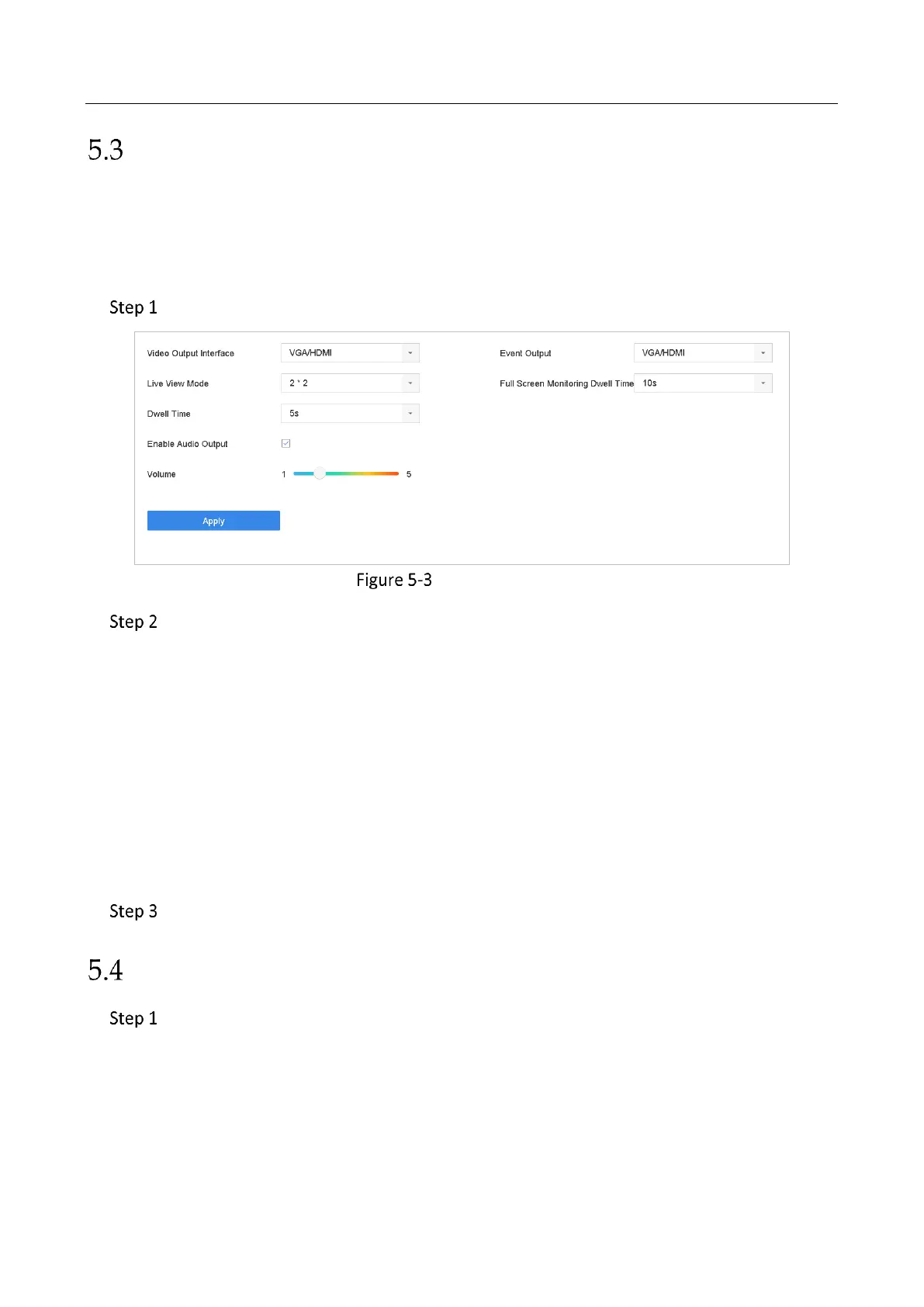

Live View-General
Configure the live view parameters.
 Video Output Interface: Select the video output to configure.
 Live View Mode: Select the display mode for live view, e.g., 2*2, 1*5, etc.
 Dwell Time: The time in seconds to dwell between switching of cameras when enabling auto-
switch in Live View.
 Enable Audio Output: Enable/disable audio output for the selected video output.
 Volume: Adjust the volume of live view, playback and two-way audio for the selected output
interface.
 Event Output: Select the output to show event video.
 Full Screen Monitoring Dwell Time: Set the time in seconds to show alarm event screen.
Click OK to save the settings.
Configure Live View Layout
Go to System> Live View>View.

HIKVISION DS-7216HGHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265 Pro+, H.265+
Analog signal format system	NTSC, PAL
DC voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA, SATA II, SATA III
Maximum HDD capacity	10000 GB

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1100 g
