HIKVISION DS-7316HQHI-K4 User Manual

Digital Video Recorder User Manual
137

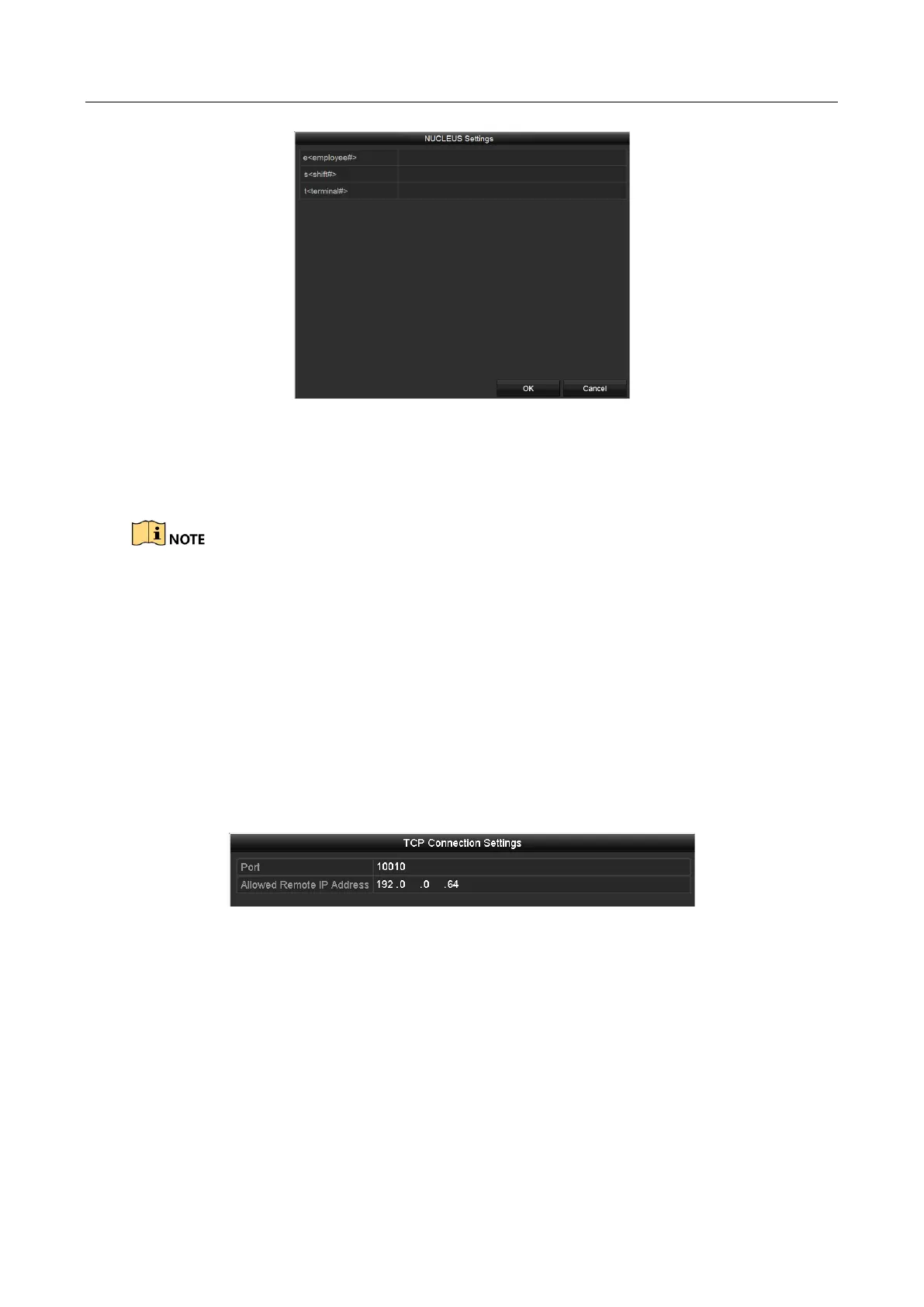

Figure 9-5 NUCLEUS Settings
2) Edit the Employee, Shift and Terminal information. No more than 32 characters can be
input.
3) Click OK to save the settings.

If you select NUCLEUS protocol, the connection type defaults to be RS-232, and all the other
POS protocol will change to be NUCLEUS.

You should set Usage to be Transparent Channel for RS-232 settings in Menu >
Configuration > RS-232 first.
Step 6 Select the Connection Type to TCP, UDP, Multicast, RS-232, USB->RS-232 or Sniff, and click
Set to configure the parameters for each connection type.
 TCP Connection
When using TCP connection, the port must be set from 0 to 65535, and the port for each
POS machine must be unique. Input the Allowed Remote IP Address for connecting the
DVR and the POS machine via TCP.
Figure 9-6 TCP Connection Settings
 UDP Connection
When using UDP connection, the port must be set from 0 to 65535, and the port for each
POS machine must be unique. Input the Allowed Remote IP Address for connecting the
DVR and the POS machine via UDP.

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
