Chapter 12 Network Settings
12.1 Configuring General Settings
Purpose
Network settings must be properly configured before you operate DVR over network.
Step 1 Go to Menu > Configuration > Network > General.

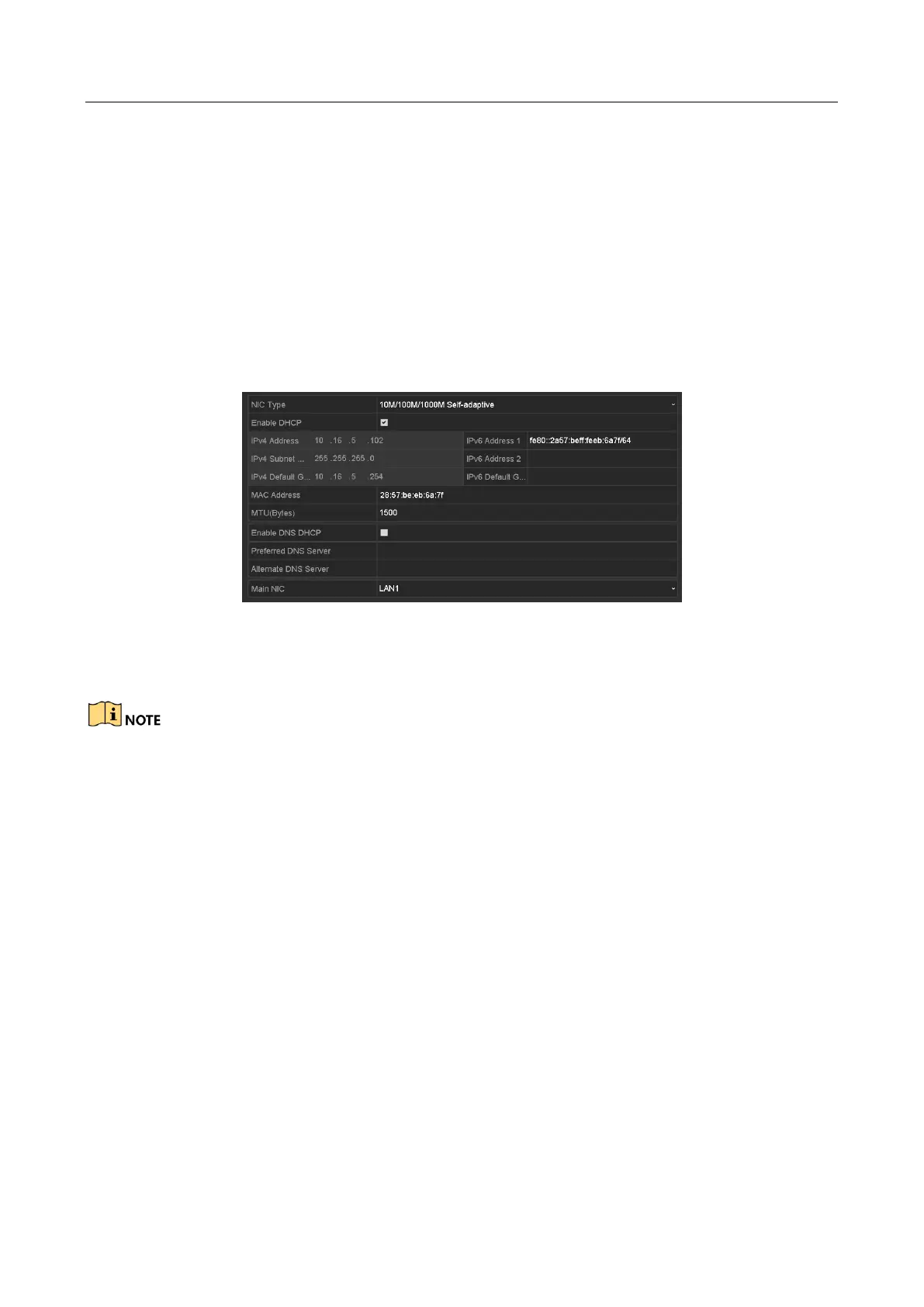

Figure 12-1 Network Settings Interface
Step 2 On the General Settings interface, you can configure the following parameters: NIC Type,
IPv4 Address, IPv4 Gateway, MTU, DNS Server and Main NIC.

The valid value of MTU is from 500 to 1500.

If the DHCP server is available, you can check the checkbox of Enable DHCP to
automatically obtain an IP address and other network settings from that server.

If DHCP is enabled, you can check the checkbox of Enable DNS DHCP or uncheck it and edit
the Preferred DNS Server and Alternate DNS Server.
Step 3 After having configured the general settings, click the Apply button to save the settings.
12.2 Configuring Advanced Settings
12.2.1 Configuring PPPoE Settings
Purpose
The DVR also allows access by Point-to-Point Protocol over Ethernet (PPPoE).
Step 1 Go to Menu > Configuration > Network > PPPoE.

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
