HIKVISION DS-7316HQHI-K4 User Manual

Digital Video Recorder User Manual
213

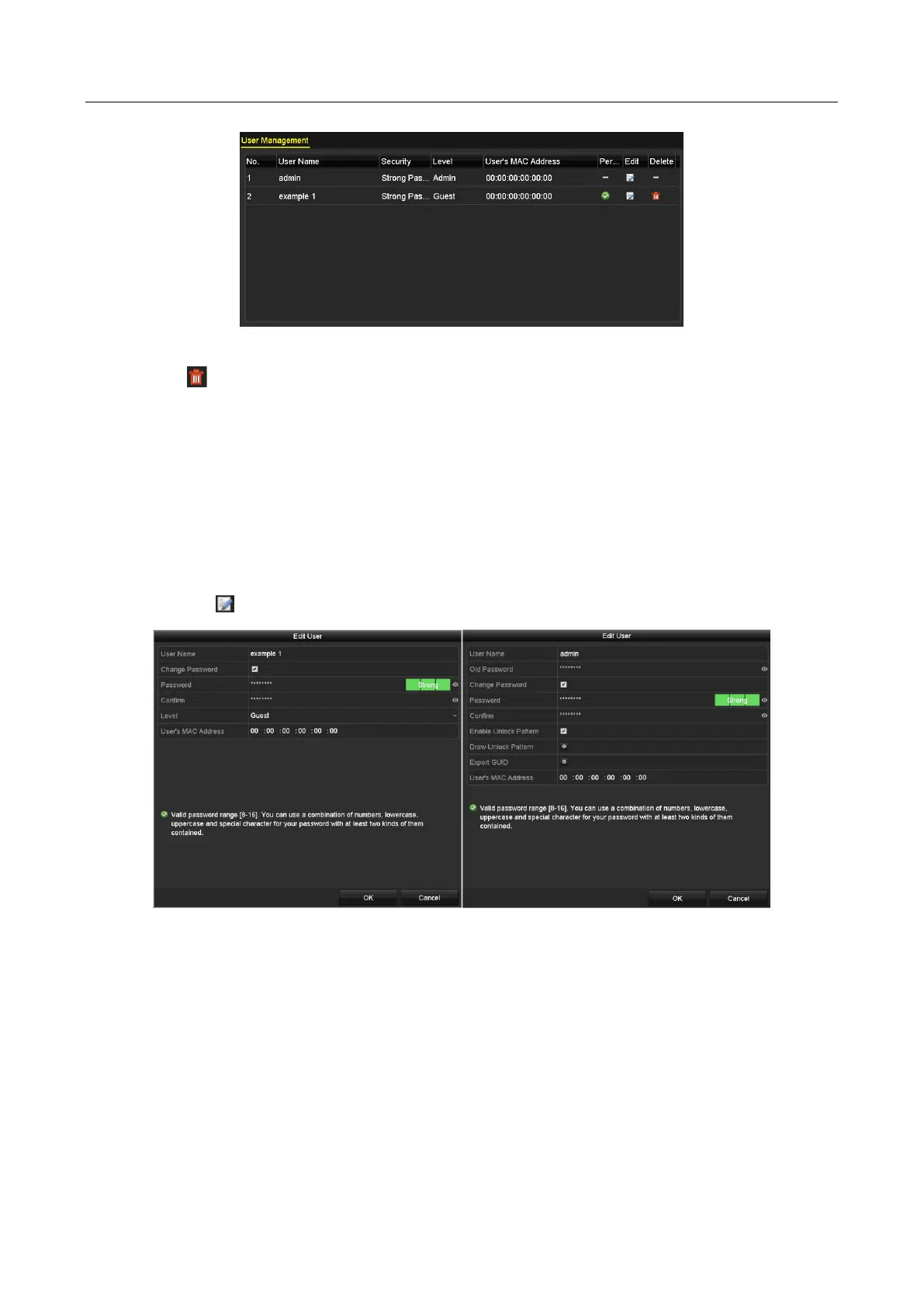

Figure 16-12 User List
Step 3 Click to delete the selected user account.
16.4.3 Editing a User
Purpose
For the added user accounts, you can edit the parameters.
Step 1 Go to Menu > Configuration > User.
Step 2 Select the user to be edited from the list.
Step 3 Click the icon to enter the Edit User interface, as shown below.
Figure 16-13 Edit User Interface
Step 4 Edit the corresponding parameters.
 Operator and Guest
You can edit the user information, including user name, password, permission level and
MAC address. Check the checkbox of Change Password if you want to change the password,
and input the new password in the text field of Password and Confirm. A strong password
is recommended.
 Admin

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
