HIKVISION DS-7316HQHI-K4 User Manual

Digital Video Recorder User Manual
207
Step 3 Click the Apply button to save the settings.
16.2 Configuring DST Settings
Step 1 Go to Menu > Configuration > General > DST Settings.

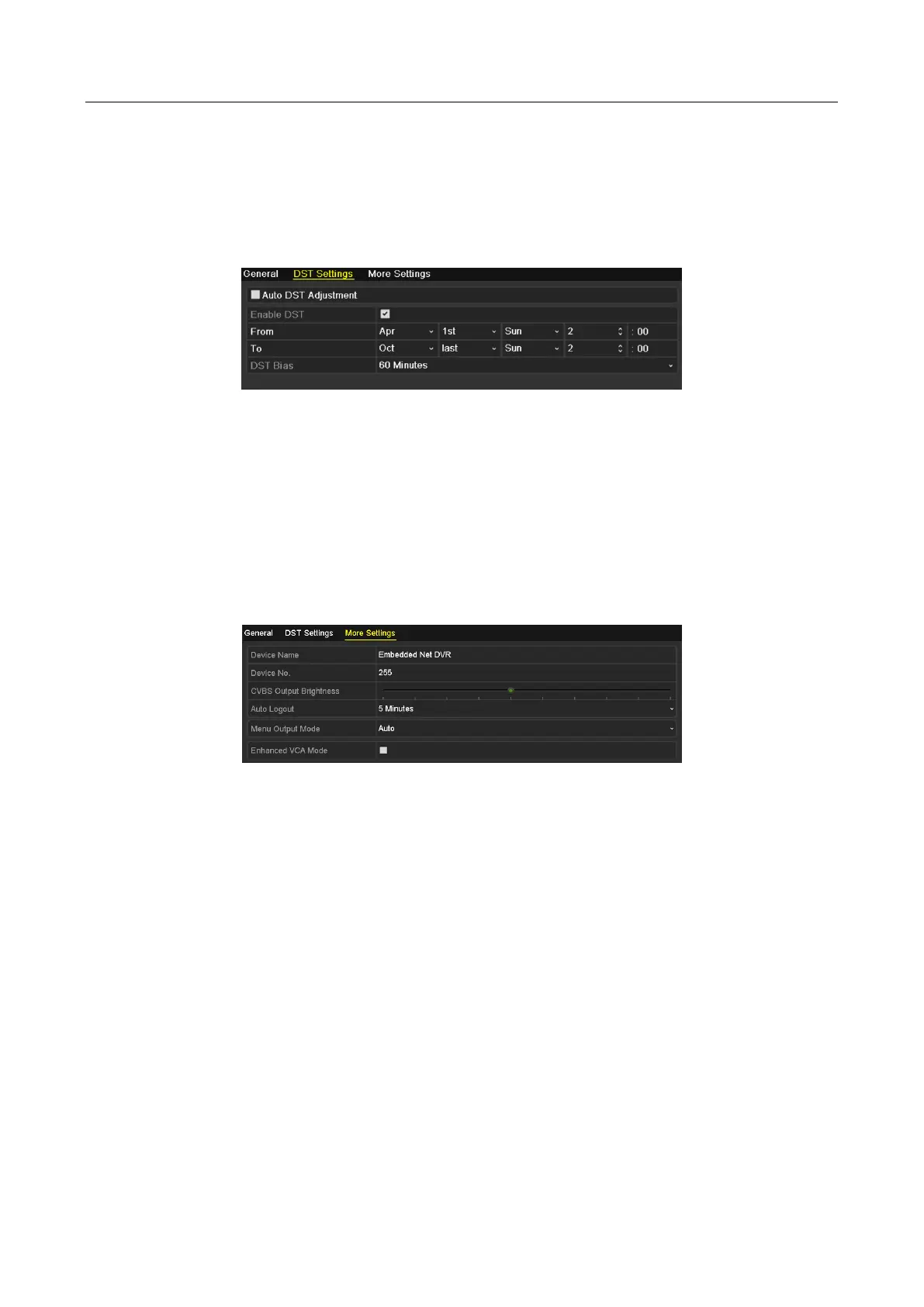

Figure 16-2 DST Settings Interface
Step 2 Check the checkbox before the Auto DST Adjustment item.
Or you can manually check the Enable DST checkbox, and then you choose the date of the
DST period.
16.3 Configuring More Settings
Step 1 Go to Menu > Configuration > General > More Settings.
Figure 16-3 More Settings Interface
Step 2 Configure the following settings:
 Device Name: Edit the name of DVR.
 Device No.: Edit the serial number of DVR. The Device No. can be set in the range of 1 to
255, and the default No. is 255.
 Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5
Minutes, then the system will exit from the current operation menu to live view screen
after 5 minutes of menu inactivity.
 CVBS Output Brightness: Adjust the video output brightness via the CVBS interface.
 Menu Output Mode: You can choose the menu display on different video output.
Auto and HDMI/VGA are selectable.

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
